SAC-3P-M12Y/2X0,5-PUR/M12FR SO

1543854

PHOENIX CONTACT

100 Pcs.

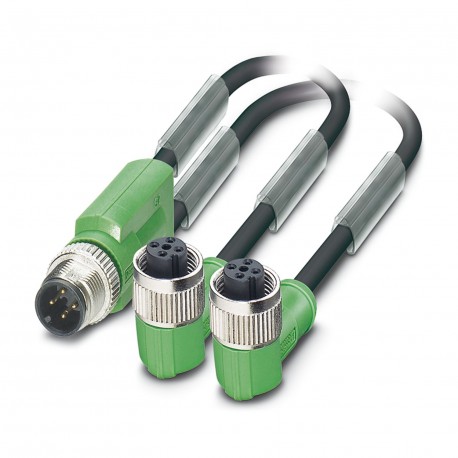

Sensor/actuator cable Sensor/Actuator Cable, 3-Pole, M12 Straight Connector, Encoding: A, to M12 Elbow Female, Coding: A and M12 Elbow Female, Coding: A, Cable Length: 0.5 m, Customer Variant Sensor/actuator cable, 3-pole, halogen-free PUR, greyish black RAL 7021, Straight connector M12, coding: A, to Elbow female M12, coding: A and Elbow female M12, coding: A, cable length: 0.5 m, Customer variant

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1543854
Packing unit1
GTIN4046356103435
Custom tariff number85444290

Dimensions

Length of cable0.5 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
Degree of protectionIP65
IP67
IP68

General

Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions3
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Torque0.4 Nm (M12 connector)

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Pin assignment

Contact | Color (signal designation) | Contact (optional)1 (Plug) | BN | 1 (Socket 1) | 1 (Socket 2)
4 (Plug) | BK | 3 (Socket 1)
2 (Plug) | BU | 3 (Socket 2)
3 (Plug) | N.C.

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94HB

Cable

Cable typePUR/PVC black
Cable type (abbreviation)350
Cable abbreviationLiYY-11Y
UL AWM style20549 / 1729
Conductor cross section0.34 mm²
Conductor structure signal line42x 0.10 mm
Core diameter including insulation1.5 mm ±0.05 mm
Thickness, insulation≥ 0.23 mm (Core insulation)
Wire colorsbrown, blue, black
Overall twist3 wires, twisted
Length of twist, overall twist55 mm
External sheath, colorblack-gray RAL 7021
Inner sheath thicknessapprox. 0.5 mm
Outer sheath thickness≥ 0.38 mm (Outer cable sheath)
External cable diameter D5.2 mm ±0.2 mm
Smallest bending radius, fixed installation26 mm
Smallest bending radius, movable installation52 mm
Cable weight37 kg/km
Outer sheath, materialPUR
Material, inner sheathPVC
Material conductor insulationPVC
Conductor materialBare Cu litz wires
Insulation resistance≥ 100 MΩ*km (at 20 °C)
Conductor resistancemax. 58 Ω/km (at 20 °C)
Nominal voltage, cable300 V
Test voltage, cable3000 V
Special propertiesFlexible use, however not recommended for use in drag chains
Flame resistanceaccording to UL 758/1581 (horizontal)
in accordance with UL 758/1581 FT2
According to DIN EN 60332-2-2 (20 s)
Other resistancehydrolysis and microbe resistant
Low adhesion
abrasion-resistant
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)

Classifications


ETIM for 1543854 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 3
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Other
Cable length (EF000536) 0.5 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -25 °C
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65
