PHOENIX CONTACT SAC-3P-M12MS/20,0-PVC/M12FS SAC-3P-M12MS/20,0-PVC/M12FS 1426509 PHOENIX CONTACT Cable for sensors/actuators, 3-pin, PVC, black RAL 9005,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-3P-M12MS/20,0-PVC/M12FS 1426509 PHOENIX CONTACT Cable for sensors/actuators, 3-pin, PVC, black RAL 9005,..

SAC-3P-M12MS/20,0-PVC/M12FS

1426509

PHOENIX CONTACT

50 Pcs.

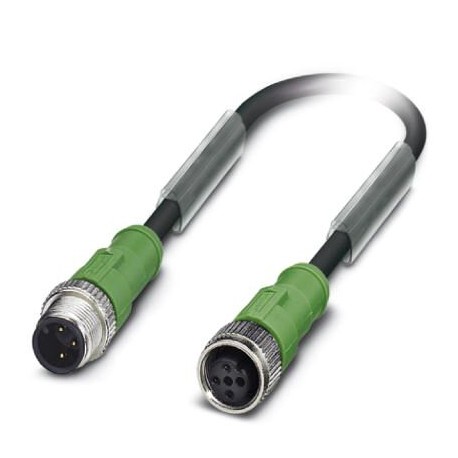

Cable for sensors/actuators, 3-pin, PVC, black RAL 9005, Plug straight M12, coded A, A connection socket straight M12, coded, cable length: 20 m Sensor/actuator cable, 3-pole, PVC, black RAL 9005, M12 straight male connector, coding: A, to M12 straight connection female, coding: A, cable length: 20 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Sensor/actuator cables, 3-pole, PVC, black RAL 9005, M12 straight connector, keying A, on M12 straight female connector, keying A, cable length: 20 m

Business Data

Order Code1426509
Packaging unit1 pcs
Minimum Order Quantity50 pcs
NoteMade-to-order (no rework)
GTIN4055626462288
Weight per piece (excluding packaging)0.586 KGM
Customs Tariff Number85444290
Country of originDE (Germany)

Odds

Cable length20 m

Environmental conditions

Ambient Temperature (Operating)-25 °C ... 90 °C (male/female connector)
Ingress protectionIP65
IP67

General

Reference current at 40 °C4 A
Reference voltage250 V AC
250 V DC
Number of poles3
Insulation resistance≥ 100 MΩ
KeyingA - standard
Standards / SpecificationsIEC 61076-2-101 M12 Connector
Status displayNo
Protection Circuit/ComponentDisconnected
Surge CategoryII
Degree of pollution3
Plugging cycles≥ 100
Tightening torque0.4 Nm

Material

Flammability class according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact holder materialTPU GF
Plug Surface MaterialTPU, flame retardant, self-extinguishing
Wheel materialZinc die-cast, nickel-plated
Seal materialNBR

Standards and specifications

Designation of the standardM12 connector
Standards/RequirementsIEC 61076-2-101
Flammability class according to UL 94HB

Cable

Cable TypeBlack PVC
Cable Type (Symbol)PVC
Cable SymbolLiYY
Style UL AWM2464 / 1729 (80 °C / 300 V)
Conductor Section3x 0.34 mm² (Signal Line)
AWG Signal Line22
Conductor structure signal line19x 0.15 mm
Wire diameter with insulation1.26 mm ±0.05 mm
Insulation thickness≥ 0.23 mm (Wire Insulation)
Yarn coloursbrown, blue, black
Total wiring3 longitudinally twisted wires
Outer sheath, colourblack RAL 9005
Outer sheath thickness≥ 0.76 mm
Cable Outer Diameter D4.3 mm ±0.2 mm
Minimum bending radius, fixed position5 x D
Minimum bend radius, flexible position10 x D
Cable Weight40 kg/km
Outer Sheath, MaterialPVC
Wire Insulating MaterialPVC
Conductive materialBare Cu Cord
Insulation resistance≥ 100 MΩ*km (at 20°C)
Conductor resistancemax. 57 Ω/km (at 20 °C)
Rated cable voltage≤ 300 V
Test Voltage Cable≥ 2500 V
Resistance to flame spreadaccording to UL Style 2464
Ambient Temperature (Operating)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSPeriod of use in accordance with the rules: unlimited = EFUP-e
No hazardous substances exceeding the threshold values;

Classifications

eCl@ss

eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 9.027060311

ETIM

ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

ETIM for 1426509 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 3
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 20 m
Material of cable sheath (EF004136) Polyvinyl chloride (PVC)
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -25 °C
Permitted cable outer temperature during assembling/handling (EF001685) -10 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 250 V
Degree of protection (IP) (EF005474) IP65
