View larger
Images are for illustrative purposes only. Please refer to data sheet for details

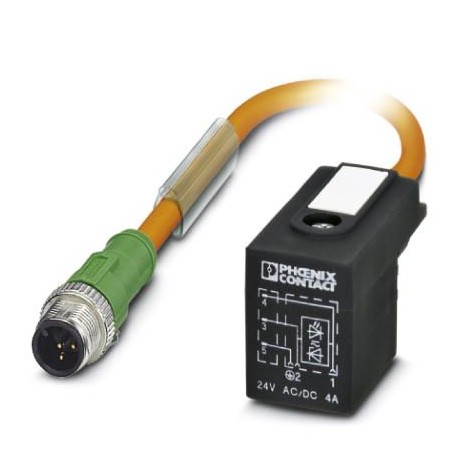

SAC-3P-M12MS/1,5-PUR/B-1L-Z VW 1400601 PHOENIX CONTACT Sensor/actuator cable
SAC-3P-M12MS/1,5-PUR/B-1L-Z VW
1400601
PHOENIX CONTACT
5 Pcs.
Sensor/actuator cable
Sensor/actuator cable, 3-pole, halogen-free, irradiation-cross-linked, highly flexible, orange RAL 2003, Straight male connector M12, coding: A, a Valve connector B (10 mm), with 1 LED, connected with Diode Z, cable length: 1.5 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Ambient conditions
| Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
|---|---|
| -20 °C ... 85 °C (valve plug) | |
| Degree of protection | IP65 |
| IP67 |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 24 V AC |
| 24 V DC | |
| Number of positions | 3 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Status display | 1 LED |
| Protective circuit/component | Z diode |
| Overvoltage category | III |
| Degree of pollution | 3 |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | TPU |
| Valve plug contact material | CuSn |
| Valve plug contact surface material | Sn |
| Valve plug contact insert material | PA 6.6 |
| Material housing valve plug | TPU |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | TPU (Seal molded) |
Cable
| Cable type | PUR irradiated halogen-free orange |
|---|---|
| Cable type (abbreviation) | 150 |
| Cable abbreviation | Li12Y11X |
| Conductor cross section | 3x 0.5 mm² (Signal line) |
| AWG signal line | 20 |
| Conductor structure signal line | 28x 0.15 mm |
| Core diameter including insulation | 1.46 mm ±0.02 mm (Signal line) |
| Thickness, insulation | ≥ 0.21 mm (Core insulation) |
| approx. 0.6 mm (Outer cable sheath) | |
| Wire colors | black 1, black 2, green/yellow |
| Overall twist | 3 wires, twisted |
| External sheath, color | orange RAL 2003 |
| External cable diameter D | 4.5 mm ±0.15 mm |
| Number of bending cycles | 5000000 |
| Bending radius | 45 mm |
| Traversing path | 10 m |
| Traversing rate | 3 m/s |
| Cable weight | 31 kg/km |
| Outer sheath, material | PUR |
| Material conductor insulation | TPE-E |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | ≥ 100 MΩ*km (at 20 °C) |
| Conductor resistance | max. 39 Ω/km (at 20 °C) |
| Nominal voltage, cable | ≤ 300 V |
| Test voltage, cable | ≥ 3000 V |
| Special properties | Silicone-free |
| Irradiated | |
| Flame resistance | in accordance with DIN UL-Style 20549 |
| Halogen-free | in accordance with DIN VDE 0472 part 815 |
| Ambient temperature (operation) | -25 °C ... 80 °C (cable, fixed installation) |
| -5 °C ... 80 °C (cable, flexible installation) |
