Cable - SAC-3P-M12MS/1,5-PUR/A-1L-Z VW - 1439560

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

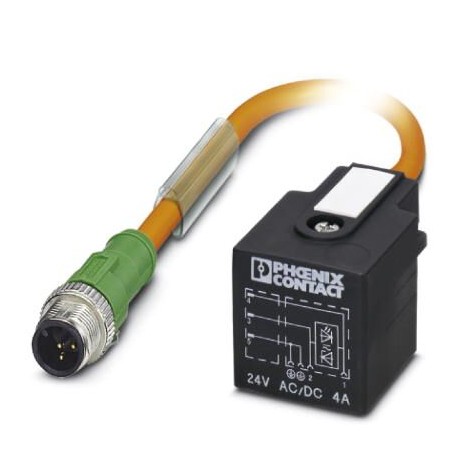

Cable, 3-position, PUR halogen-free, irradiated, highly flexible, orange RAL 2003, Plug straight M12, A-coded, on Valve connector A, with 1 LED, connected with Z diode, cable length: 1.5 m, Customer-specific version

Key Commercial Data

Orderkey1439560
Packing unit1
GTIN4046356489416
Custom tariff number85444290

Dimensions

Length of cable1.5 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
-20 °C ... 85 °C (valve plug)
Degree of protectionIP65
IP67

General

Rated current at 40°C4 A
Rated voltage24 V AC
24 V DC
Number of positions3
Insulation resistance≥ 100 MΩ
CodingA - standard
Status display1 LED
Protective circuit/componentZ diode
Overvoltage categoryIII
Degree of pollution3
Insertion/withdrawal cycles≥ 100

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU
Valve plug contact materialCuSn
Valve plug contact surface materialSn
Valve plug contact insert materialPA 6.6
Material housing valve plugTPU
Material, knurlsZinc die-cast, nickel-plated
Sealing materialTPU (Seal molded)

Standards and Regulations

Flammability rating according to UL 94HB

Cable

Cable typePUR irradiated halogen-free orange
Cable type (abbreviation)150
Cable abbreviationLi12Y11X
Conductor cross section3x 0.5 mm² (Signal line)
AWG signal line20
Conductor structure signal line28x 0.15 mm
Core diameter including insulation1.46 mm ±0.02 mm (Signal line)
Thickness, insulation≥ 0.21 mm (Core insulation)
approx. 0.6 mm (Outer cable sheath)
Wire colorsblack 1, black 2, green/yellow
Overall twist3 wires, twisted
External sheath, colororange RAL 2003
External cable diameter D4.5 mm ±0.15 mm
Number of bending cycles5000000
Bending radius45 mm
Traversing path10 m
Traversing rate3 m/s
Cable weight31 kg/km
Outer sheath, materialPUR
Material conductor insulationTPE-E
Conductor materialBare Cu litz wires
Insulation resistance≥ 100 MΩ*km (at 20 °C)
Conductor resistancemax. 39 Ω/km (at 20 °C)
Nominal voltage, cable≤ 300 V
Test voltage, cable≥ 3000 V
Special propertiesSilicone-free
Irradiated
Flame resistancein accordance with DIN UL-Style 20549
Halogen-freein accordance with DIN VDE 0472 part 815
Ambient temperature (operation)-25 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 4.027060306
eCl@ss 4.127060306
eCl@ss 5.027061801
eCl@ss 5.127061800
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311

ETIM

ETIM 3.0EC001855
ETIM 4.0EC001855
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

UNSPSC

UNSPSC 6.0131251501
UNSPSC 7.090131251501
UNSPSC 1131251501
UNSPSC 12.0131251501
UNSPSC 13.231251501

Product Datasheet
