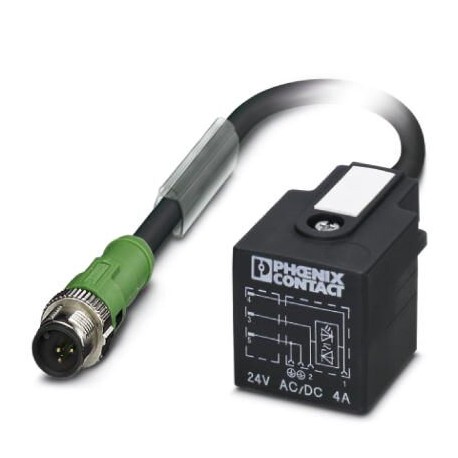

PHOENIX CONTACT SAC-3P-M12MS/10,0-PUR/A-1L-Z SAC-3P-M12MS/10,0-PUR/A-1L-Z 1438464 PHOENIX CONTACT Sensor/actuator cable SAC-3P-M12MS/10,0-PUR/A-1L-Z 1438.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-3P-M12MS/10,0-PUR/A-1L-Z 1438464 PHOENIX CONTACT Sensor/actuator cable SAC-3P-M12MS/10,0-PUR/A-1L-Z 1438..

SAC-3P-M12MS/10,0-PUR/A-1L-Z

1438464

PHOENIX CONTACT

1 Pcs.

Sensor/actuator cable - SAC-3P-M12MS/10,0-PUR/A-1L-Z - 1438464

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Sensor/actuator cable, PUR halogen-free, black-gray RAL 7021, Plug straight M12, A-coded, on Valve connector A, with 1 LED, connected with Z diode, cable length: 10 m

Key Commercial Data

Orderkey1438464
Packing unit1
GTIN4046356488266
Custom tariff number85444290

Dimensions

Length of cable10 m

Ambient conditions

Degree of protectionIP65
IP67

General

Rated current at 40°C4 A
Rated voltage24 V AC
24 V DC
Status display1 LED
Protective circuit/componentZ diode
Overvoltage categoryIII
Degree of pollution3
Insertion/withdrawal cycles≥ 100

Material

Flammability rating according to UL 94HB

Standards and Regulations

Flammability rating according to UL 94HB

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)PUR
Cable abbreviationLi9Y11Y-HF
UL AWM style20549
Conductor cross section3x 0.5 mm²
AWG signal line20
Conductor structure signal line28x 0.15 mm
Core diameter including insulation1.5 mm ±0.05 mm (Signal line)
Wire colorsblack 1, black 2, green/yellow
Overall twist3 wires, twisted
External sheath, colorblack-gray RAL 7021
External cable diameter D4.5 mm ±0.2 mm
Smallest bending radius, fixed installation22.5 mm
Number of bending cycles15000000
Bending radius50 mm
Traversing path0.9 m
Traversing rate5 m/s
Acceleration30 m/s²
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistancemin. 20 MΩ*km
Conductor resistance39 Ω/km (at 20 °C)
Nominal voltage, cable≤ 300 V
Test voltage, cable≥ 1200 V
Flame resistanceaccording to DIN VDE 0482
According to DIN EN 50265-2-1
Halogen-freein accordance with DIN VDE 0472 part 815
Other resistancelargely oil-resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

eCl@ss

eCl@ss 4.027060306
eCl@ss 4.127060306
eCl@ss 5.027061801
eCl@ss 5.127061800
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311

ETIM

ETIM 3.0EC001855
ETIM 4.0EC001855
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

UNSPSC

UNSPSC 6.0131251501
UNSPSC 7.090131251501
UNSPSC 1131251501
UNSPSC 12.0131251501
UNSPSC 13.231251501
