View larger
Images are for illustrative purposes only. Please refer to data sheet for details

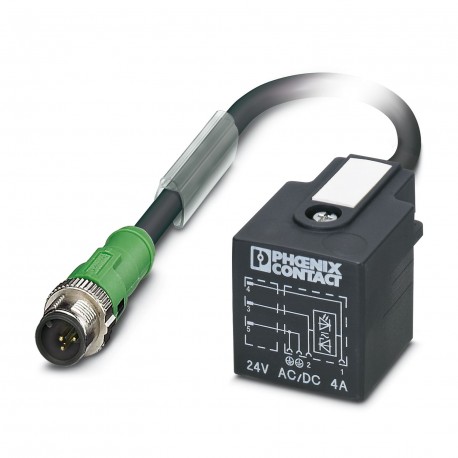

SAC-3P-M12MS/0,9-PUR/A-1L-Z 1439557 PHOENIX CONTACT Cable for sensors/actuators, PUR halogen-free, black-gra..
SAC-3P-M12MS/0,9-PUR/A-1L-Z
1439557
PHOENIX CONTACT
1 Pcs.
Cable for sensors/actuators, PUR halogen-free, black-gray RAL 7021, Plug straight M12, coded, to valve Connector A, with 1 LED, connected with Z Diode, cable length: 0.9 m
Sensor/actuator cable, halogen-free PUR, grayish black RAL 7021, Straight male connector M12, coding: A, a Valve connector A, with 1 LED, connected with Diode Z, cable length: 0.9 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Cable for sensors/actuators, PUR halogen-free, black-gray RAL 7021, Plug straight M12, coded, to valve Connector A, with 1 LED, connected with Z Diode, cable length: 0.9 m
Data commercial
| Key order | One million four hundred thirty nine thousand five hundred fifty seven |
|---|---|
| Packing unit | 1 pcs |
| Key selling | BF1DJA - |
| EAN | Four trillion forty six billion three hundred fifty six million four hundred eighty nine thousand four hundred nine |
| Unit weight (excluding packaging) | 60,000 g |
| Tariff number tariff | Eighty five million four hundred forty four thousand two hundred ninety |
| Country of origin | PL (Poland) |
Measures
| Cable length | 0.9 m |
|---|
Environmental conditions
| Room temperature (service) | |
|---|---|
| Index of protection | IP65 |
| IP67 |
Overview
| Current sizing at 40 °C | 4 To |
|---|---|
| Tension sizing | 24 V AC |
| 24 V DC | |
| Status indication | 1 LED |
| Protective circuit/component protection | Diode Z |
| Category surge | III |
| Pollution degree | Three |
| Cycles of plug | ≥ 100 |
Material
| Class of flammability according to UL 94 | HB |
|---|
Standards and specifications
| Class of flammability according to UL 94 | HB |
|---|
Cable
| Type of cable | PUR halogen-free black |
|---|---|
| Cable type (abbreviation) | PUR |
| Abbreviation of cable | Li9Y11Y-HF |
| UL AWM Style | Twenty thousand five hundred forty nine |
| Section of driver | 3x 0.5 mm2 |
| Signal cable AWG | Twenty |
| Construction of the driver signal cable | 28x 0.15 mm |
| Diameter of the conductors, insulation included | 1.5 mm ±0.05 mm (conductor signals) |
| Colors driver | black 1, black 2, green/yellow |
| Cabling total | 3-conductor longitudinally twisted |
| Outer wrap, color | black-grey RAL 7021 |
| Outer diameter of cable D | 4.5 mm ±0.2 mm |
| Smallest bending radius, fixed mounting | 22.5 mm |
| Number of bending cycles | Fifteen million |
| Bending radius | 50 mm |
| Journey forward | 0.9 m |
| Forward speed | 5 m/s |
| Acceleration | 30 m/s2 |
| Outer casing, material | PUR |
| Material Insulation conductor | PP |
| Conductive Material | Conductor Cu bare |
| Insulation resistance | min. 20 MΩ*km |
| Resistance of the conductor | 39 Ω/km (at 20 °C) |
| Rated voltage Cable | ≤ 300 V |
| Test voltage Cable | ≥ 1200 V |
| Flame resistance | according to DIN VDE 0482 |
| according to DIN en 50265-2-1 | |
| Absence of halogen | according to DIN VDE 0472 part 815 |
| Other resistors | largely resistant to oil |
| conditionally UV-resistant according to DIN en ISO 4892-2-A | |
| Room temperature (service) | -40 °C ... 80 °C (cable, fixed) |
| -20 °C ... 80 °C (cable, available mobile) |
Environmental Product Compliance
| China RoHS | Space of time for the intended use (FEUP): 50 years |
|---|---|
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss
| eCl@ss 4.0 | Twenty seven million sixty thousand three hundred six |
|---|---|
| eCl@ss 4.1 | Twenty seven million sixty thousand three hundred six |
| eCl@ss 5.0 | Twenty seven million sixty one thousand eight hundred one |
| eCl@ss 5.1 | Twenty seven million sixty one thousand eight hundred |
| eCl@ss 6.0 | Twenty seven million two hundred seventy nine thousand two hundred |
| eCl@ss 7.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 8.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 9.0 | Twenty seven million sixty thousand three hundred eleven |
ETIM
| ETIM 3.0 | EC001855 |
|---|---|
| ETIM 4.0 | EC001855 |
| ETIM 5.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
UNSPSC
| UNSPSC 6.01 | Thirty one million two hundred fifty one thousand five hundred one |
|---|---|
| UNSPSC 7.0901 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 11 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 12.01 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 13.2 | Thirty one million two hundred fifty one thousand five hundred one |
