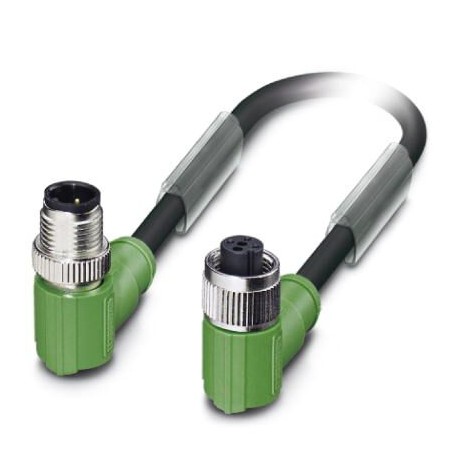

PHOENIX CONTACT SAC-3P-M12MR/0,62-PUR/M12FR SH SAC-3P-M12MR/0,62-PUR/M12FR SH 1079242 PHOENIX CONTACT Sensor/actuator cable, 3-position, PUR halogen-free, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-3P-M12MR/0,62-PUR/M12FR SH 1079242 PHOENIX CONTACT Sensor/actuator cable, 3-position, PUR halogen-free, ..

SAC-3P-M12MR/0,62-PUR/M12FR SH

1079242

PHOENIX CONTACT

50 Pcs.

Sensor/actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, shielded, Plug angled M12, A-coded, on Socket angled M12, A-coded, cable length: 0.62 m Sensor/actuator cable, 3-pole, halogen-free PUR, greyish black RAL 7021, shielded, Male bent connector M12, encoding: A, a Female wired connection M12, encoding: A, cable length: 0.62 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1079242
Packing unit1
GTIN4055626798080
Custom tariff number85444290

Drawings

Diagram

Diagram

Dimensional drawing

Dimensional drawing
M12 x 1 male plug, angled, shielded

Dimensional drawing

Dimensional drawing
M12 x 1 socket, angled, shielded

Circuit diagram

Circuit diagram
Contact assignment of the M12 plug and the M12 socket

Schematic diagram

Schematic diagram
Pin assignment M12 plug, 3-pos., A-coded, view male side

Schematic diagram

Schematic diagram
Pin assignment M12 socket, 3-pos., A-coded, view female side

Back to top

Dimensions

Length of cable0.62 m
Back to top

Ambient conditions

Degree of protectionIP65
IP67
Back to top

General

Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions3
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryII
Degree of pollution3
Back to top

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR
Back to top

Standards and Regulations

Standards/specificationsM12 connector IEC 61076-2-101
Flammability rating according to UL 94HB
Back to top

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)PUR
Cable abbreviationLi9Y-Vl-C-Vl-11Y
UL AWM style20549
Conductor cross section3x 0.34 mm² (Signal line)
AWG signal line22
Conductor structure signal line42x 0.10 mm
Core diameter including insulation1.27 mm ±0.02 mm (Signal line)
Thickness, insulation≥ 0.21 mm (Core insulation)
approx. 0.5 mm (Outer cable sheath)
Wire colorsbrown, blue, black
Overall twist3 wires, twisted
ShieldingBraided copper wires
Optical shield covering80 %
External sheath, colorblack-gray RAL 7021
External cable diameter D4.65 mm ±0.15 mm
Smallest bending radius, fixed installation23 mm
Smallest bending radius, movable installation47 mm
Number of bending cycles10000000
Bending radius47 mm
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Cable weight31 kg/km
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 100 GΩ*km (at 20 °C)
Conductor resistancemax. 58 Ω/km (at 20 °C)
Nominal voltage, cable≤ 300 V
Test voltage, cable≥ 3000 V
Special propertiesFlexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
Flame resistancein accordance with UL 758/1581 FT2
DIN EN 60332-2-2 (20 s)
Halogen-freein accordance with DIN VDE 0472 part 815
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceHighly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)
Back to top

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 4.027060306
eCl@ss 4.127060306
eCl@ss 5.027061801
eCl@ss 5.127061801
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311
Back to top

ETIM

ETIM 2.0EC000830
ETIM 3.0EC001855
ETIM 4.0EC001855
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855
Back to top

UNSPSC

UNSPSC 6.0131251501
UNSPSC 7.090131251501
UNSPSC 1131251501
UNSPSC 12.0131251501
UNSPSC 13.231251501
UNSPSC 19.031251501
UNSPSC 20.031251501
UNSPSC 21.031251501
Back to top

ETIM for 1079242 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 3
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Angled
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Angled
Cable length (EF000536) 0.62 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -25 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65
