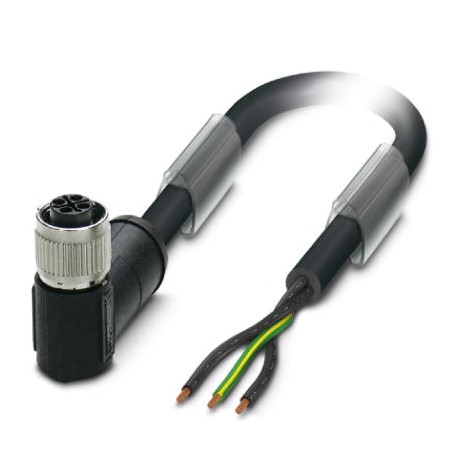

PHOENIX CONTACT SAC-3P-5,0-PUR/FRS PE PPH DMG SAC-3P- 5,0-PUR/FRS PE PPH DMG 1421610 PHOENIX CONTACT Power cable SAC-3P- 5,0-PUR/FRS PE PPH DMG 1421610 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-3P- 5,0-PUR/FRS PE PPH DMG 1421610 PHOENIX CONTACT Power cable SAC-3P- 5,0-PUR/FRS PE PPH DMG 1421610

SAC-3P-5,0-PUR/FRS PE PPH DMG

1421610

PHOENIX CONTACT

10 Pcs.

Power cable - SAC-3P- 5,0-PUR/FRS PE PPH DMG - 1421610 Power cable, 3-poles, Straight connector M12, coding: S, to Angled Female M12, coding: S, cable length: 5 m, for alternating current up to 16 A/230 V, Customer variant, KL MODULE DMG PPH 2854889 COMPL. MOUNTED on free cable end

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Power cable, 3-position, PUR, black, Plug straight, on Socket angled M12 SPEEDCON, S-coded, cable length: 5 m, for AC current up to 16 A/230 V, Customer version, KL DMG PPH MODUL 2854889 KPL. MONTIERT at free cable end

Key Commercial Data

Orderkey1421610
Packing unit1
GTIN4055626390314
Custom tariff number85444290

Dimensions

Length of cable5 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 105 °C (Plug / socket)
Degree of protectionIP65
IP67

General

Rated current at 40°C16 A
Rated voltage230 V AC
230 V DC
Number of positions3
Insulation resistance> 100 MΩ
CodingS power
Status displayNo
Protective circuit/componentunwired
Overvoltage categoryIII
Degree of pollution3
Insertion/withdrawal cycles> 100
Torque0.4 Nm

Material

Flammability rating according to UL 94V0
Contact materialCuZn
Contact surface materialAu
Contact carrier materialPA
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated

Standards and Regulations

Flammability rating according to UL 94V0

Cable

Cable typePUR
External sheath, colorblack
Outer sheath, materialPUR

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

eCl@ss

eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 9.027060311

ETIM

ETIM 6.0EC001855
ETIM 7.0EC001855

ETIM for 1421610 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 3
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Angled
Cable length (EF000536) 5 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) No
Colour cable sheath (EF008249) Black
With LED indication (EF005950) No
Screened (EF000881) No
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Rated voltage (EF000228) 230 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
