View larger
Images are for illustrative purposes only. Please refer to data sheet for details

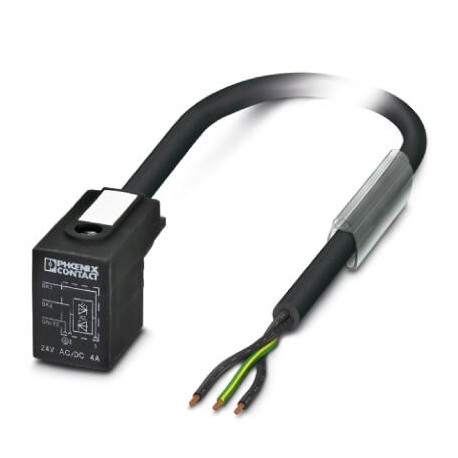

SAC-3P- 3,0-PUR/BI-1L-Z 180 1423029 PHOENIX CONTACT Sensor/actuator cable SAC-3P- 3,0-PUR/BI-1L-Z 180 1423029
SAC-3P-3,0-PUR/BI-1L-Z 180
1423029
PHOENIX CONTACT
50 Pcs.
Sensor/actuator cable - SAC-3P- 3,0-PUR/BI-1L-Z 180 - 1423029
Sensor/Actuator Cable, 3-pole, Halogen-free PUR, Grey-Black RAL 7021, free cable end, to BI Valve Connectors (11 mm), Circuit: Z-Diode, Cable Length: 3 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Sensor/actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, cable length: 3 m
Key Commercial Data
| Orderkey | 1423029 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626323602 |
| Custom tariff number | 85444290 |
Dimensions
| Length of cable | 3 m |
|---|---|
| Stripping length of the free conductor end | 50 mm |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 24 V AC |
| 24 V DC | |
| Number of positions | 3 |
| Status display | 1 LED |
| Protective circuit/component | Z diode |
| Overvoltage category | III |
| Degree of pollution | 3 |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Valve plug contact material | CuSn |
| Valve plug contact surface material | Sn |
| Valve plug contact insert material | PA 6.6 |
| Material housing valve plug | TPU |
| Sealing material | TPU (Seal molded) |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
|---|
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 6.0 | 27279200 |
|---|---|
| eCl@ss 7.0 | 27279218 |
| eCl@ss 8.0 | 27279218 |
| eCl@ss 9.0 | 27060311 |
ETIM
| ETIM 5.0 | EC001855 |
|---|---|
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
UNSPSC
| UNSPSC 13.2 | 31251501 |
|---|
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 3 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Positioning cable feed, field-sided (EF005928) | Other |
| Type of electrical connection, box-sided (EF005524) | Other |
| Positioning cable feed, box-sided (EF005927) | Other |
| Cable length (EF000536) | 3 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | Yes |
| Screened (EF000881) | No |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuSn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -20 °C |
| Rated voltage (EF000228) | 24 V |
| Degree of protection (IP) (EF005474) | IP65 |
