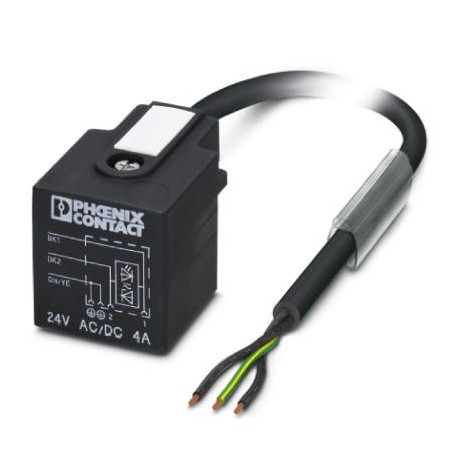

PHOENIX CONTACT SAC-3P-3,0-PUR/A-1L-Z 110V SAC-3P- 3,0-PUR/A-1L-Z 110V 1439667 PHOENIX CONTACT Sensor/actuator cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-3P- 3,0-PUR/A-1L-Z 110V 1439667 PHOENIX CONTACT Sensor/actuator cable

SAC-3P-3,0-PUR/A-1L-Z 110V

1439667

PHOENIX CONTACT

1 Pcs.

Sensor/actuator cable Sensor/Actuator Cable, 3-pole halogen-free, free cable end, to A Valve Connectors, with 1 LED, connected with Z-Diode, cable length: 3 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1439667
Packing unit1 pc
NoteMade to Order (non-returnable)
GTIN4046356489607
Weight per Piece (excluding packing)112.700 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable3 m

Ambient conditions

Ambient temperature (operation)-20 °C ... 85 °C (valve plug)
Degree of protectionIP65
IP67

General

Rated current at 40°C1 A
Rated voltage110 V AC
110 V DC
Number of positions3
Insulation resistance≥ 100 MΩ
Standards/regulationsValve connector EN 175301-803
Status display1 LED
Protective circuit/componentZ diode
Overvoltage categoryIII
Degree of pollution3
Torque0.6 Nm (Valve connector)

Material

Flammability rating according to UL 94V0
Valve plug contact materialCuSn
Valve plug contact surface materialSn
Valve plug contact insert materialPA 6.6
Material housing valve plugTPU
Sealing materialTPU (Seal molded)

Standards and Regulations

Standard designationValve connector
Standards/regulationsEN 175301-803
Flammability rating according to UL 94V0

Cable

Cable typePUR halogen-free black
Cable type (abbreviation)PUR
Cable abbreviationLi9Y11Y-HF
UL AWM style20549
Conductor cross section3x 0.5 mm²
AWG signal line20
Conductor structure signal line28x 0.15 mm
Core diameter including insulation1.5 mm ±0.05 mm (Signal line)
Wire colorsblack 1, black 2, green/yellow
Overall twist3 wires, twisted
External sheath, colorblack-gray RAL 7021
External cable diameter D4.5 mm ±0.2 mm
Smallest bending radius, fixed installation22.5 mm
Number of bending cycles15000000
Bending radius50 mm
Traversing path0.9 m
Traversing rate5 m/s
Acceleration30 m/s²
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistancemin. 20 MΩ*km
Conductor resistance39 Ω/km (at 20 °C)
Nominal voltage, cable≤ 300 V
Test voltage, cable≥ 1200 V
Flame resistanceaccording to DIN VDE 0482
According to DIN EN 50265-2-1
Halogen-freein accordance with DIN VDE 0472 part 815
Other resistancelargely oil-resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications
