SAC-3P-25,0-PUR/M 8FS SH 0,34

1422984

PHOENIX CONTACT

50 Pcs.

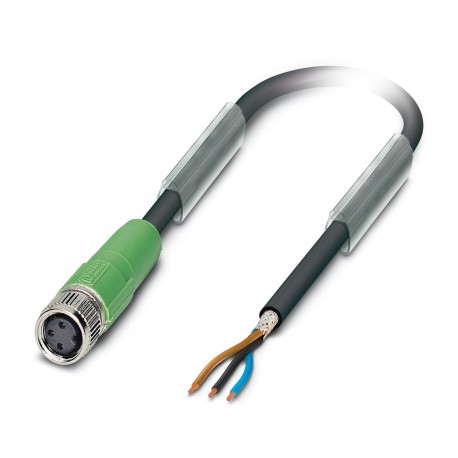

Sensor/actuator cable - SAC-3P-25,0-PUR/M 8FS SH 0,34 - 1422984 Sensor/actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, shielded, free cable end, on Socket straight M8, coding: A, cable length: 25 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSensor/actuator cable
ApplicationStandard
Number of positions3
No. of cable outlets1
Shieldedyes
CodingA
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Material specifications
Flammability rating according to UL 94HB
Seal materialNBR
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material for screw connectionZinc die-cast, nickel-plated
Electrical properties
Nominal voltage UN48 V AC
60 V DC
Nominal current IN4 A
Signaling
Status displayno
Status display presentNo
Connector
Connection 1
Typefree cable end
Connection 2
TypeSocket straight M8
Number of positions3
Coding typeA
Cable/line
Cable length25 m
PUR halogen-free black [PUR]
Cable weight31 kg/km
UL AWM Style20549
Number of positions3
Shieldedyes
Cable typePUR halogen-free black [PUR]
Conductor structure signal line42x 0.10 mm
AWG signal line22
Conductor cross section3x 0.34 mm² (Signal line)
Wire diameter incl. insulation1.27 mm ±0.02 mm (Signal line)
External cable diameter4.65 mm ±0.15 mm
Outer sheath, materialPUR
External sheath, colorblack-gray RAL 7021
Conductor materialBare Cu litz wires
Material wire insulationPP
Single wire, colorbrown, blue, black
Thickness, insulation≥ 0.21 mm (Core insulation)
approx. 0.50 mm (Outer cable sheath)
Overall twist3 wires, twisted
Optical shield covering80 %
Max. conductor resistancemax. 58 Ω/km (at 20 °C)
Insulation resistance≥ 100 GΩ*km (at 20 °C)
Nominal voltage, cable≤ 300 V
Test voltage≥ 3000 V
Smallest bending radius, fixed installation23 mm
Smallest bending radius, movable installation47 mm
Dynamic load capacity (bending)Max. bending cycles: 10000000, Bending radius: 47 mm, Traversing path: 10 m, Traversing rate: 3 m/s, Acceleration: 10 m/s²
Halogen-freein accordance with DIN VDE 0472 part 815
Flame resistancein accordance with UL 758/1581 FT2
DIN EN 60332-2-2 (20 s)
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceHighly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
partly UV-resistant (in accordance with DIN EN ISO 4892-2-A)
Special propertiesFlexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (Cable, flexible installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
Standards and regulations
Standard designationM8 connector
Standards/specificationsIEC 61076-2-104

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
