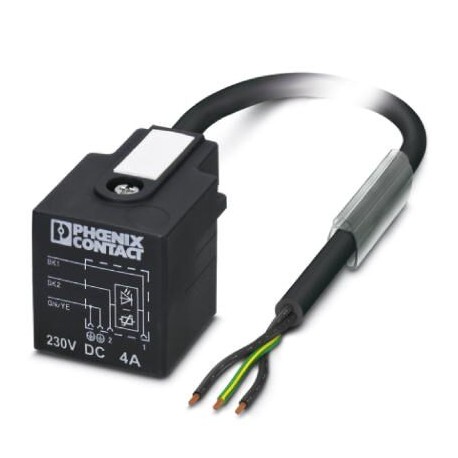

PHOENIX CONTACT SAC-3P-1,5-534/A-1L-V 230V SAC-3P- 1,5-534/A-1L-V 230V 1453711 PHOENIX CONTACT Sensor/actuator cable SAC-3P- 1,5-534/A-1L-V 230V 1453711 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-3P- 1,5-534/A-1L-V 230V 1453711 PHOENIX CONTACT Sensor/actuator cable SAC-3P- 1,5-534/A-1L-V 230V 1453711

SAC-3P-1,5-534/A-1L-V 230V

1453711

PHOENIX CONTACT

50 Pcs.

Sensor/actuator cable - SAC-3P- 1,5-534/A-1L-V 230V - 1453711 Sensor/Actuator Cable, 3-Pole, Free Cable End, to Valve Connectors A, with 1 LED, connected to Varistor 230 V, cable length: 1.5 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Sensor/actuator cable, 3-position, PVC, black, free cable end, on Valve connector A, with 1 LED, connected with Varistor, cable length: 1.5 m

Key Commercial Data

Orderkey1453711
Packing unit1
GTIN4046356554688
Custom tariff number85444290

Dimensions

Length of cable1.5 m

Ambient conditions

Ambient temperature (operation)-20 °C ... 85 °C (valve plug)
Degree of protectionIP65
IP67

General

Rated current at 40°C4 A
Rated voltage230 V AC
230 V DC
Number of positions3
Insulation resistance≥ 100 MΩ
Standards/regulationsValve connector EN 175301-803
Status display1 LED
Protective circuit/componentVaristor 230 V
Overvoltage categoryIII
Degree of pollution3
Torque0.6 Nm (Valve connector)

Material

Flammability rating according to UL 94V0
Valve plug contact materialCuSn
Valve plug contact surface materialSn
Valve plug contact insert materialPA 6.6
Material housing valve plugTPU
Sealing materialTPU (Seal molded)

Standards and Regulations

Standard designationValve connector
Standards/regulationsEN 175301-803
Flammability rating according to UL 94V0

Cable

Cable typePVC, 0.75 mm², black
Cable type (abbreviation)534
Conductor cross section3x 0.75 mm² (Signal line)
AWG signal line18
Conductor structure signal line24x 0.20 mm
Core diameter including insulation1.7 mm ±0.1 mm
Wire colorsblack 1, black 2, green/yellow
Overall twist3 wires, twisted
External sheath, colorblack
External cable diameter D5.3 mm ±0.2 mm
Minimum bending radius, fixed installation5 x D
Outer sheath, materialPVC
Material conductor insulationPVC
Conductor materialBare Cu litz wires
Insulation resistancemin. 20 MΩ*km (at 20 °C)
Conductor resistance26 Ω/km (at 20 °C)
Nominal voltage, cable300 V
Test voltage, cable1200 V
Flame resistanceDIN VDE 0482
DIN EN 50265-2-1
in acc. to UL VW1
Resistance to oilin accordance with DIN EN 60811-2-1
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)

Classifications

eCl@ss

eCl@ss 4.027060306
eCl@ss 4.127060306
eCl@ss 5.027061801
eCl@ss 5.127061800
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311

ETIM

ETIM 3.0EC001855
ETIM 4.0EC001855
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

UNSPSC

UNSPSC 6.0131251501
UNSPSC 7.090131251501
UNSPSC 1131251501
UNSPSC 12.0131251501
UNSPSC 13.231251501

ETIM for 1453711 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 3
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Type of electrical connection, box-sided (EF005524) Other
Positioning cable feed, box-sided (EF005927) Other
Cable length (EF000536) 1.5 m
Material of cable sheath (EF004136) Polyvinyl chloride (PVC)
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Black
With LED indication (EF005950) Yes
Screened (EF000881) No
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -5 °C
Rated voltage (EF000228) 230 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet
