View larger
Images are for illustrative purposes only. Please refer to data sheet for details

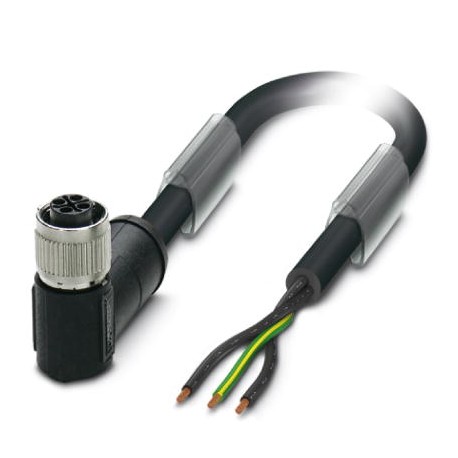

SAC-3P-10,0-PUR/FRS PE PPH DMG 1421978 PHOENIX CONTACT Power cable SAC-3P-10,0-PUR/FRS PE PPH DMG 1421978
SAC-3P-10,0-PUR/FRS PE PPH DMG
1421978
PHOENIX CONTACT
1 Pcs.
Power cable - SAC-3P-10,0-PUR/FRS PE PPH DMG - 1421978
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Power cable, 3-position, PUR, black, Plug straight, on Socket angled M12 SPEEDCON, S-coded, cable length: 10 m, for AC current up to 16 A/230 V, Customer version, KL DMG PPH MODUL 2854889 KPL. MONTIERT at free cable end
Key Commercial Data
| Orderkey | 1421978 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626390345 |
| Custom tariff number | 85444290 |
Dimensions
| Length of cable | 10 m |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 105 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 |
General
| Rated current at 40°C | 16 A |
|---|---|
| Rated voltage | 230 V AC |
| 230 V DC | |
| Number of positions | 3 |
| Insulation resistance | > 100 MΩ |
| Coding | S power |
| Status display | No |
| Protective circuit/component | unwired |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Insertion/withdrawal cycles | > 100 |
| Torque | 0.4 Nm |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Zinc die-cast, nickel-plated |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
|---|
Cable
| Cable type | PUR |
|---|---|
| External sheath, color | black |
| Outer sheath, material | PUR |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 6.0 | 27279200 |
|---|---|
| eCl@ss 7.0 | 27279218 |
| eCl@ss 9.0 | 27060311 |
ETIM
| ETIM 6.0 | EC001855 |
|---|---|
| ETIM 7.0 | EC001855 |
