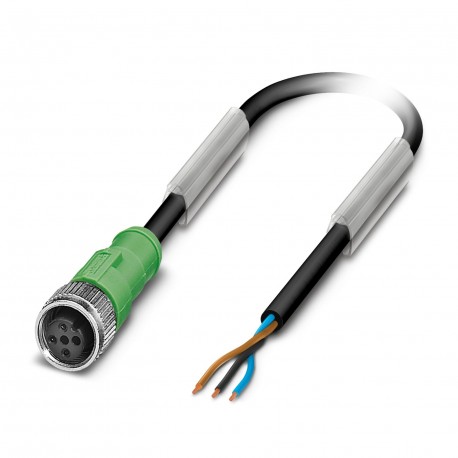

PHOENIX CONTACT SAC-3P-10,0-280/M12FSB OBS SAC-3P-10,0-280/M12FSB OBS 1408563 PHOENIX CONTACT Sensor/actuator cable SAC-3P-10,0-280/M12FSB OBS 1408563 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-3P-10,0-280/M12FSB OBS 1408563 PHOENIX CONTACT Sensor/actuator cable SAC-3P-10,0-280/M12FSB OBS 1408563

SAC-3P-10,0-280/M12FSB OBS

1408563

PHOENIX CONTACT

50 Pcs.

Sensor/actuator cable - SAC-3P-10,0-280/M12FSB OBS - 1408563 Sensor/actuator cable, 3-pole, halogen-free PUR, grey RAL 7001, free cable end, to Straight connection female M12, coding: B, cable length: 10 m Sensor/actuator cable, 3-pole, PUR halogen-free, grey RAL 7001, free end of cable, on socket straight M12, coding: B, cable length: 10 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Sensor/actuator cable, 3-position, PUR halogen-free, gray RAL 7001, free cable end, on Socket straight M12, B-coded, cable length: 10 m

Key Commercial Data

Orderkey1408563
Packing unit1
GTIN4046356817707
Custom tariff number85444290

Dimensions

Length of cable10 m

Ambient conditions

Degree of protectionIP65
IP67
IP68

General

Rated current at 40°C4 A
Rated voltage250 V AC
250 V DC
Number of positions3
Insulation resistance≥ 100 MΩ
CodingB-coded
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Torque0.4 Nm

Material

Flammability rating according to UL 94HB
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Halogen-freein accordance with DIN VDE 0472 part 815
Flammability rating according to UL 94HB

Cable

Cable typePUR halogen-free gray
Cable type (abbreviation)280
Cable abbreviationLi9Y11Y
UL AWM style20549
Conductor cross section0.34 mm²
AWG signal line22
Conductor structure signal line42x 0.10 mm
Core diameter including insulation1.27 mm ±0.02 mm
Thickness, insulation0.21 mm (Core insulation)
approx. 0.8 mm (Outer cable sheath)
Wire colorsbrown, blue, black
Overall twist3 wires, twisted
External sheath, colorgray RAL 7001
External cable diameter D4.4 mm ±0.15 mm
Cable weight26 kg/km
Outer sheath, materialPUR
Material conductor insulationTPE
Conductor materialBare Cu litz wires
Insulation resistance≥ 10 GΩ*km (at 20 °C)
Conductor resistancemax. 58 Ω/km (at 20 °C)
Nominal voltage, cable≤ 300 V
Test voltage, cable≥ 3000 V
Halogen-freein accordance with DIN VDE 0472 part 815
Ambient temperature (operation)-25 °C ... 80 °C (cable, fixed installation)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 4.027060306
eCl@ss 4.127060306
eCl@ss 5.027061801
eCl@ss 5.127061800
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311

ETIM

ETIM 3.0EC001855
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

UNSPSC

UNSPSC 6.0131251501
UNSPSC 7.090131251501
UNSPSC 1131251501
UNSPSC 12.0131251501
UNSPSC 13.231251501

ETIM for 1408563 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 3
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 10 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -25 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 250 V
Degree of protection (IP) (EF005474) IP65
