PHOENIX CONTACT SAC-2P-M12MSB/ 0,6-910/M12FSB SAC-2P-M12MSB/ 0,6-910/M12FSB 1547779 PHOENIX CONTACT Bus system cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-2P-M12MSB/ 0,6-910/M12FSB 1547779 PHOENIX CONTACT Bus system cable

SAC-2P-M12MSB/ 0,6-910/M12FSB

1547779

PHOENIX CONTACT

50 Pcs.

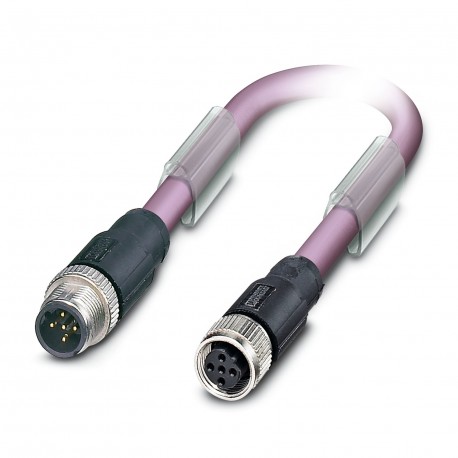

Bus system cable Bus system cable, PROFIBUS, 2-pole halogen-free, shielded, M12 straight connector, encoding: B, a M12 straight female, coding: B, cable length: 0.6 m Bus system cable, PROFIBUS, 2-position, PUR halogen-free, red lilac RAL 4001, shielded, Plug straight M12, coding: B, on Socket straight M12, coding: B, cable length: 0.6 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeData cable preassembled
Sensor typePROFIBUS
Number of positions2
No. of cable outlets1
Shieldedyes
CodingB
Data management status
Article revision06
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Interfaces
Bus systemPROFIBUS
Signal type/categoryPROFIBUS
Signaling
Status displayno
Status display presentNo
Electrical properties
Insulation resistance≥ 100 MΩ
Nominal voltage UN48 V AC
60 V DC
Nominal current IN4 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 100
Material specifications
Flammability rating according to UL 94V0
Seal materialNBR
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPA 6.6
Material for screw connectionZinc die-cast, nickel-plated
Connector
Connection 1
TypePlug straight M12
Number of positions2
Coding typeB (inverse)
Connection 2
TypeSocket straight M12
Number of positions2
Coding typeB
Cable/line
Cable length0.6 m
PROFIBUS [910]
Dimensional drawingzkcybqnsbj.jpg
Cable weight90 kg/km
UL AWM Style21198 (80°C/300 V)
Number of positions2
Shieldedyes
Cable typePROFIBUS [910]
Conductor structure1x2xAWG24/19
Conductor structure signal line19x 0.13 mm
AWG signal line24
Conductor cross section2x 0.25 mm² (Signal line)
Wire diameter incl. insulation2.55 mm ±0.07 mm
External cable diameter7.80 mm ±0.2 mm
Outer sheath, materialPUR
External sheath, colorred lilac RAL 4001
Conductor materialTin-plated Cu litz wires
Material, fillerPP
Material wire insulationFoam-Skin PP
Single wire, colorred, green
Overall twist2 cores with 2 fillers to the core
Optical shield covering85 %
Max. conductor resistance≤ 78.6 Ω/km
Insulation resistance≥ 5 GΩ*km
Wave impedance150 Ω ±10 % (3 MHz ... 20 MHz)
Cable capacitynom. 30 pF/m
Nominal voltage, cable300 V
Test voltage Core/Core1500 V (50 Hz, 1 min.)
Test voltage Core/Shield1500.00 V (50 Hz, 1 min.)
Smallest bending radius, fixed installation40 mm
Smallest bending radius, movable installation65 mm
Dynamic load capacity (bending)Max. bending cycles: 4000000, Bending radius: 65 mm, Traversing path: 4.5 m, Traversing rate: 3 m/s, Acceleration: 3 m/s², Ambient temperature: -20 °C ... 60 °C
Max. bending cycles: 5000000, Bending radius: 80 mm, Traversing path: 4.5 m, Traversing rate: 3 m/s, Acceleration: 3 m/s², Ambient temperature: -20 °C ... 60 °C
Shield attenuation≤ 0.049 dB/m (at 16 MHz)
Halogen-freein accordance with DIN VDE 0472 part 815
according to IEC 60754-1
Flame resistanceUL 1581, Section 1060 and UL 2556, Section 9.3 (FT1)
UL 1581, Section 1100 and UL 2556, Section 9.1 (HFT/FT2)
IEC 60332-1-2
Other resistanceLow adhesion
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-30 °C ... 70 °C (Cable, flexible installation)
-20 °C ... 60 °C (for installation)
-20 °C ... 60 °C (cable, drag chain applications)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
IP68
Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (Cable, flexible installation)

ETIM for 1547779 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 2
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Female (bus)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 0.6 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -30 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
