SAC-2P-M 8MR/0,28-PUR/CI-1L-Z 1403006 PHOENIX CONTACT Sensor/actuator cable, 2-position, PUR halogen-free, b..
SAC-2P-M 8MR/0,28-PUR/CI-1L-Z
1403006
PHOENIX CONTACT
50 Pcs.

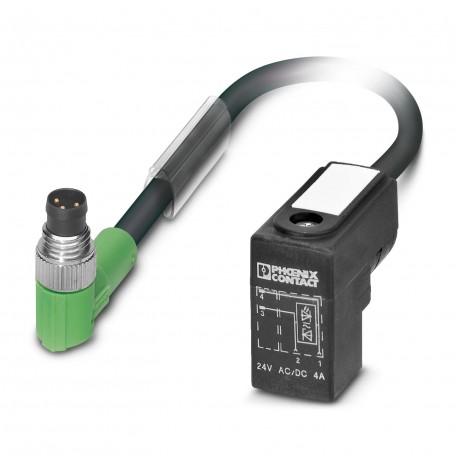

Sensor/actuator cable, 2-position, PUR halogen-free, black-gray RAL 7021, Plug angled M8, on Valve connector CI (9.4 mm), with 1 LED, connected with Z diode, cable length: 0.28 m
Sensor/actuator cable, 2-pole, halogen-free PUR, greyish black RAL 7021, M8 angled male connector, to IC valve connector (9.4 mm), with 1 LED, connected with Z Diode, cable length: 0.28 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Sensor/actuator cable with valve connector |
| Number of positions | 2 |
Connection data
| Pin assignment | |
| Contact Color (signal designation) Contact (optional) | 3 (M8 plug) BU 2 (Valve connector) |
| 4 (M8 plug) BN 1 (Valve connector) | |
| 1 (M8 plug) N.C. | |
Electrical properties
| Nominal voltage UN | 24 V AC |
| 24 V DC |
Connector
| Connection 1 | |
| Type | Plug angled M8 |
| Connection 2 | |
| Type | Valve connector CI (9.4 mm) |
Cable/line
| Cable length | 0.28 m |
| PUR halogen-free black [PUR] | |
| Dimensional drawing |  |
| Cable weight | 23 kg/km |
| UL AWM Style | 20549 |
| Number of positions | 3 |
| Shielded | no |
| Cable type | PUR halogen-free black [PUR] |
| Conductor structure signal line | 42x 0.10 mm |
| AWG signal line | 22 |
| Conductor cross section | 3x 0.34 mm² (Signal line) |
| Wire diameter incl. insulation | 1.27 mm ±0.02 mm (Signal line) |
| External cable diameter | 3.85 mm ±0.15 mm |
| Outer sheath, material | PUR |
| External sheath, color | black-gray RAL 7021 |
| Conductor material | Bare Cu litz wires |
| Material wire insulation | PP |
| Single wire, color | brown, blue, black |
| Thickness, insulation | ≥ 0.21 mm (Core insulation) |
| approx. 0.50 mm (Outer cable sheath) | |
| Overall twist | 3 wires, twisted |
| Max. conductor resistance | max. 58 Ω/km (at 20 °C) |
| Insulation resistance | ≥ 100 GΩ*km (at 20 °C) |
| Nominal voltage, cable | ≤ 300 V |
| Test voltage | ≥ 3000 V |
| Smallest bending radius, fixed installation | 19 mm |
| Smallest bending radius, movable installation | 38 mm |
| Dynamic load capacity (bending) | Max. bending cycles: 10000000, Bending radius: 38 mm, Traversing path: 10 m, Traversing rate: 3 m/s, Acceleration: 10 m/s² |
| Halogen-free | in accordance with DIN VDE 0472 part 815 |
| Flame resistance | in accordance with UL 758/1581 FT2 |
| DIN EN 60332-2-2 (20 s) | |
| Resistance to oil | in accordance with DIN EN 60811-2-1 |
| Other resistance | Highly resistant to acids, alkaline solutions and solvents |
| hydrolysis and microbe resistant | |
| partly UV-resistant (in accordance with DIN EN ISO 4892-2-A) | |
| Special properties | Flexible cable conduit capable |
| Silicone-free | |
| Free of substances which would hinder coating with paint or varnish | |
| Ambient temperature (operation) | -40 °C ... 80 °C (cable, fixed installation) |
| -25 °C ... 80 °C (Cable, flexible installation) | |
