View larger
Images are for illustrative purposes only. Please refer to data sheet for details

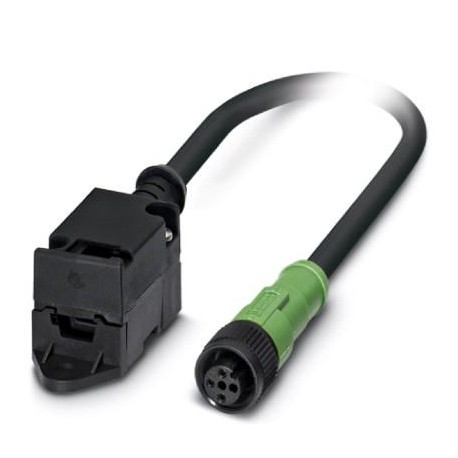

SAC-2P-ASIFK/ 3,0-PUR/M12FS P 1557303 PHOENIX CONTACT Bus system cable
SAC-2P-ASIFK/ 3,0-PUR/M12FS P
1557303
PHOENIX CONTACT
1 Pcs.
Bus system cable
Bus system cable, AS interface, 2-pole, PUR/PVC, black RAL 9005, shielded, Straight connector AS-i, to Straight female M12, coding: A, cable length: 3 m, with plastic knurling
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1557303 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4046356185059 |
| Weight per Piece (excluding packing) | 176.900 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Rated current at 40°C | 2 A |
|---|---|
| Rated voltage | 30 V AC |
| 30 V DC | |
| Number of positions | 2 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Signal type/category | AS-Interface |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Insertion/withdrawal cycles | ≥ 100 |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Plastic |
| Sealing material | NBR |
Cable
| Cable type | PUR/PVC black |
|---|---|
| Conductor cross section | 0.75 mm² |
| AWG signal line | 18 |
| Wire colors | brown, blue |
| External sheath, color | black RAL 9005 |
| External cable diameter | 5.80 mm |
| Outer sheath, material | PUR |
| Material, inner sheath | PVC |
| Material conductor insulation | PVC |
| Conductor material | Bare Cu litz wires |
