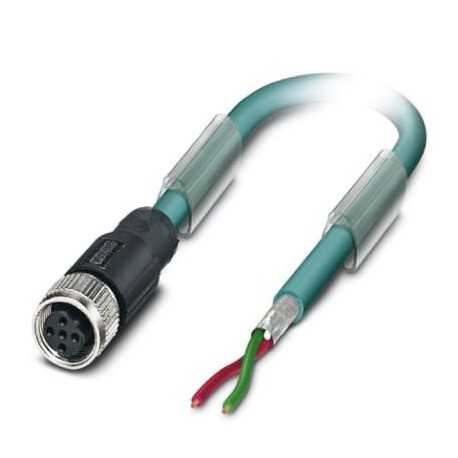

SAC-2P-15,0-915/M12FSB 1525539 PHOENIX CONTACT Bus system cable
SAC-2P-15,0-915/M12FSB
1525539
PHOENIX CONTACT
1 Pcs.
Bus system cable
Bus System Cable, PROFIBUS, 2-Pole, Screened, Free Cable End, A Straight Female M12, Encoding: B, Cable Length: 15 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1525539 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918950194 |
| Weight per Piece (excluding packing) | 1,132.200 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 48 V AC |
| 60 V DC | |
| Number of positions | 2 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | B - inverse |
| Signal type/category | PROFIBUS |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.4 Nm (M12 connector) |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
Pin assignment
| Contact | Color (signal designation) | Contact (optional) | 2 (Socket) | GN (A cable) |
|---|---|
| 4 (Socket) | RD (B cable) |
Cable
| Cable type | PROFIBUS |
|---|---|
| Cable type (abbreviation) | 915 |
| Cable structure | 1x2xAWG24/19 |
| Conductor cross section | 2x 0.25 mm² |
| AWG signal line | 24 |
| Conductor structure signal line | 19x 0.14 mm |
| Core diameter including insulation | 2.56 mm |
| Wire colors | Red, green |
| Overall twist | 2 wires, twisted |
| Shielding | Aluminum-coated foil, tinned copper braided shield |
| Optical shield covering | 70 % |
| External sheath, color | blue |
| Outer sheath thickness | approx. 0.8 mm |
| External cable diameter D | 8 mm ±0.4 mm |
| Minimum bending radius, flexible installation | 5 x D |
| Number of bending cycles | 3000000 |
| Bending radius | 60 mm |
| Acceleration | 4 m/s² |
| Cable weight | 74 kg/km |
| Tensile strength GRP | ≤ 100 N |
| Outer sheath, material | PUR |
| Material, inner sheath | PVC |
| Material conductor insulation | Foamed PE |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | ≥ 16 GΩ*km |
| Working capacitance | 28 nF (at 1 kHz) |
| Nominal voltage, cable | ≤ 100 V |
| Test voltage Core/Core | 3600 V DC |
| Flame resistance | according to IEC 60332-1 |
| Resistance to oil | Resistant to mineral oils and grease |
| Ambient temperature (operation) | -40 °C ... 80 °C (cable, flexible installation) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
