> PHOENIX CONTACT > Field Device Connectors (FDC) > 1622093

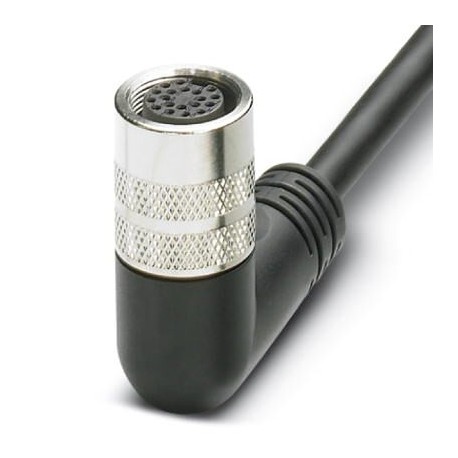

PHOENIX CONTACT SAC-14P-30,0-PUR/M16FR SAC-14P-30,0-PUR/M16FR 1622093 PHOENIX CONTACT Master cable, application: Sensor/actuator box Metal, number .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-14P-30,0-PUR/M16FR 1622093 PHOENIX CONTACT Master cable, application: Sensor/actuator box Metal, number ..

SAC-14P-30,0-PUR/M16FR

1622093

PHOENIX CONTACT

2 Pcs.

Master cable, application: Sensor/actuator box Metal, number of slots: 10, number of positions: 14, slot assignment: single, status display: No; master cable connection: M16 plug connection, PUR/PVC, cable length: 30 m, shielding: no Main cable, application: sensor/actuator box Metal, number of plug-in stations: 10, number of poles: 14, occupancy of plug-in stations: single, status indication: No; Main cable connection: M16 plug-in connection, PUR/PVC, cable length: 30 m, shielding: no

Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1622093
Packing unit1
GTIN4055626009926
Custom tariff number85444290

Drawings

Circuit diagram

Circuit diagram
Contact assignment of the M16 socket

Cable cross section

Cable cross section
PUR/PVC black [PUR]

Back to top

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 5.127061801
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311
Back to top

ETIM

ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855
Back to top

UNSPSC

UNSPSC 13.231251501
UNSPSC 19.031251501
UNSPSC 20.031251501
UNSPSC 21.031251501
Back to top

ETIM for 1622093 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 14
Type of electrical connection, field-sided (EF005525) Other
Type of plug-in contact, field sided (EF006269) Female (bus)
Positioning cable feed, field-sided (EF005928) Angled
Type of electrical connection, box-sided (EF005524) Other
Positioning cable feed, box-sided (EF005927) Other
Cable length (EF000536) 30 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuZn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -5 °C
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
