View larger
Images are for illustrative purposes only. Please refer to data sheet for details

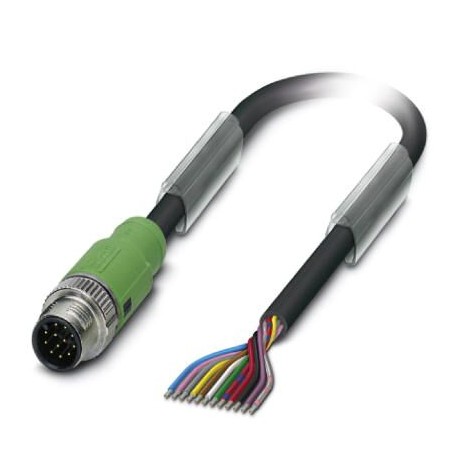

SAC-12P-MS/ 6,5-PVC SCO 1408576 PHOENIX CONTACT Sensor/actuator cable SAC-12P-MS/ 6,5-PVC SCO 1408576
SAC-12P-MS/ 6,5-PVC SCO
1408576
PHOENIX CONTACT
50 Pcs.
Sensor/actuator cable - SAC-12P-MS/ 6,5-PVC SCO - 1408576
Sensor/actuator cable, 12-pole, PVC, black RAL 9005, M12 SPEEDCON straight male connector, coding: A-coded, to free cable end, cable length: 6.5 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Sensor/actuator cable, 12-position, PVC, black RAL 9005, Plug straight M12 SPEEDCON, A-coded, on free cable end, cable length: 6.5 m
Key Commercial Data
| Orderkey | 1408576 |
|---|---|
| Packing unit | 1 |
| GTIN | 4046356831383 |
| Custom tariff number | 85444290 |
Dimensions
| Length of cable | 6.5 m |
|---|---|
| Cable diameter | 5.9 mm |
| Stripping length of the free conductor end | 35 mm |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| IP67 | |
| IP68 |
General
| Rated current at 40°C | 1.5 A |
|---|---|
| Rated voltage | 30 V AC |
| 30 V DC | |
| Number of positions | 12 |
| Insulation resistance | ≥ 10 MΩ |
| Coding | A - standard |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Zinc die-cast, nickel-plated |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | IEC 61076-2-101 |
| Flammability rating according to UL 94 | HB |
Cable
| Conductor cross section | 12x 0.14 mm² (Signal line) |
|---|---|
| AWG signal line | 26 |
| Conductor structure signal line | 18x 0.10 mm |
| Core diameter including insulation | 1 mm ±0.05 mm (Signal line) |
| Wire colors | White-brown, green-yellow, gray-pink, blue-red, black-violet, gray/pink-red/blue |
| Overall twist | 12 wires twisted in layers |
| External sheath, color | black RAL 9005 |
| External cable diameter D | 5.8 mm |
| Smallest bending radius, fixed installation | 29 mm |
| Smallest bending radius, movable installation | 87 mm |
| Outer sheath, material | PVC |
| Material conductor insulation | PVC |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | > 10 MΩ*km |
| Conductor resistance | ≤ 142 Ω/km (at 20 °C) |
| Nominal voltage, cable | 250 V |
| Test voltage Core/Core | 1500 V AC |
| Flame resistance | DIN EN 50265-2-1 |
| Ambient temperature (operation) | -25 °C ... 80 °C (cable, fixed installation) |
| -5 °C ... 80 °C (cable, flexible installation) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 4.0 | 27060306 |
|---|---|
| eCl@ss 4.1 | 27060306 |
| eCl@ss 5.0 | 27061801 |
| eCl@ss 5.1 | 27061800 |
| eCl@ss 6.0 | 27279200 |
| eCl@ss 7.0 | 27279218 |
| eCl@ss 8.0 | 27279218 |
| eCl@ss 9.0 | 27060311 |
ETIM
| ETIM 3.0 | EC001855 |
|---|---|
| ETIM 4.0 | EC001855 |
| ETIM 5.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
UNSPSC
| UNSPSC 6.01 | 31251501 |
|---|---|
| UNSPSC 7.0901 | 31251501 |
| UNSPSC 11 | 31251501 |
| UNSPSC 12.01 | 31251501 |
| UNSPSC 13.2 | 31251501 |
