View larger
Images are for illustrative purposes only. Please refer to data sheet for details

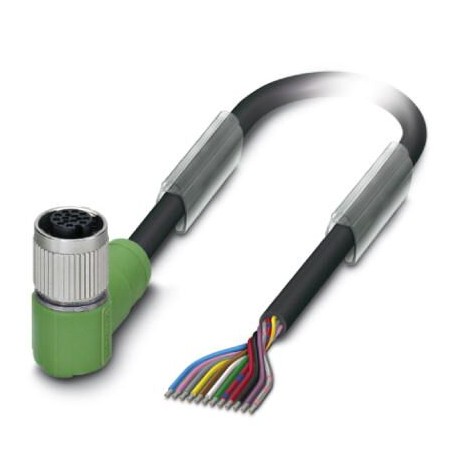

SAC-12P-20,0-PVC/FR SCO 1425779 PHOENIX CONTACT Cable for sensors/actuators, 12-pole, cable end free, to con..
SAC-12P-20,0-PVC/FR SCO
1425779
PHOENIX CONTACT
50 Pcs.
Cable for sensors/actuators, 12-pole, cable end free, to connection socket angled M12 SPEEDCON, coded, cable length: 20 m
Sensor/actuator cable, 12-pole, PVC, black RAL 9005, free cable end, to M12 SPEEDCON elbow connection female, coding: A, cable length: 20 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Cable for sensors/actuators, 12-pin, PVC, black RAL 9005, end of free cable, to connection socket angled M12 SPEEDCON, coded, cable length: 20 m
Data commercial
| Key order | One million four hundred twenty five thousand seven hundred seventy nine |
|---|---|
| Packing unit | 1 pcs |
| Key selling | BF1CGA - |
| EAN | Four trillion fifty five billion six hundred twenty six million four hundred twenty eight thousand three hundred fifty two |
| Unit weight (excluding packaging) | 970,300 g |
| Tariff number tariff | Eighty five million four hundred forty four thousand two hundred ninety |
| Country of origin | DE (Germany) |
Measures
| Cable length | 20 m |
|---|---|
| Diameter of cable | 5,9 mm |
Environmental conditions
| Room temperature (service) | -25 °C ... 90 °C (male / female) |
|---|
Overview
| Current sizing at 40 °C | 1.5 To |
|---|---|
| Tension sizing | 30 V AC |
| 30 V DC | |
| Number of poles | Twelve |
| Insulation resistance | ≥ 100 MΩ |
| Encoding | A - standard |
| Standards/specifications | Plug-in connector M12 to IEC 61076-2-101 |
| Status indication | Not |
| Protective circuit/component protection | without connect |
| Category surge | II |
| Pollution degree | Three |
Material
| Class of flammability according to UL 94 | HB |
|---|---|
| Material contact | CuZn |
| Material contact surface | Ni/Au |
| Material support of contacts | TPU GF |
| Material body grip | TPU fire-retardant, self-extinguishing |
| Material knurled | Die-cast zinc, nickel plated |
| Material of the board | NBR |
Standards and specifications
| Name of standard | Plug-in connector M12 |
|---|---|
| Standards/specifications | IEC 61076-2-101 |
| Class of flammability according to UL 94 | HB |
Cable
| Section of driver | 12x 0.14 mm2 (driver signals) |
|---|---|
| Signal cable AWG | Twenty six |
| Construction of the driver signal cable | 18x 0.10 mm |
| Diameter of the conductors, insulation included | 1 mm ±0.05 mm (conductor signals) |
| Colors driver | white-brown, green-yellow, gray-pink, blue-red, black-violet, gray/pink-red/blue |
| Cabling total | 12-wire wiring layers |
| Outer wrap, color | black RAL 9005 |
| Outer diameter of cable D | 5.8 mm |
| Smallest bending radius, fixed mounting | 29 mm |
| Smaller bending radius, mobile mounting | 87 mm |
| Outer casing, material | PVC |
| Material Insulation conductor | PVC |
| Conductive Material | Conductor Cu bare |
| Insulation resistance | > 10 MΩ*km |
| Resistance of the conductor | ≤ 142 Ω/km (at 20 °C) |
| Rated voltage Cable | 250 V |
| Test voltage Conductor/Conductor | 1500 V AC |
| Flame resistance | DIN EN 50265-2-1 |
| Room temperature (service) | -25 °C ... 80 °C (cable, fixed) |
| -5 °C ... 80 °C (cable, available mobile) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss
| eCl@ss 6.0 | Twenty seven million two hundred seventy nine thousand two hundred |
|---|---|
| eCl@ss 7.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 9.0 | Twenty seven million sixty thousand three hundred eleven |
ETIM
| ETIM 5.0 | EC001855 |
|---|---|
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 12 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Positioning cable feed, field-sided (EF005928) | Other |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Female (bus) |
| Positioning cable feed, box-sided (EF005927) | Angled |
| Cable length (EF000536) | 20 m |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | No |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuZn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -25 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -5 °C |
| Rated current In (EF008250) | 1.5 A |
| Rated voltage (EF000228) | 30 V |
| Degree of protection (IP) (EF005474) | IP65 |
