SAC- 1,0/0,1-116/2XA-1L-Z 0,12

1049893

PHOENIX CONTACT

100 Pcs.

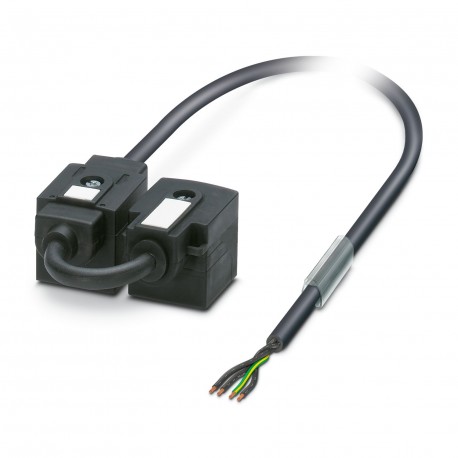

Sensor/actuator cable - SAC- 1,0/0,1-116/2XA-1L-Z 0,12 - 1049893 Sensor/Actuator Cable, 4-pole, free wire end, to Valve Connectors A, with 1 LED, connected to Diode Z and Valve Connectors A, with 1 LED, connected to Diode Z, cable length: 1 m, distance to valve connector: 0.1 m Sensor/actuator cable, 4-position, PUR/PVC, black, free cable end, on Valve connector A, with 1 LED, Wiring: Z diode and Valve connector A, with 1 LED, Wiring: Z diode, cable length: 1 m, valve connector spacing: 0.1 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSensor/actuator cable with valve connector
Number of positions4
No. of cable outlets1
Shieldedno
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Material specifications
Flammability rating according to UL 94HB
Electrical properties
Insulation resistance≥ 100 MΩ
Nominal voltage UN24 V AC
24 V DC
Nominal current IN4 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles50
Signaling
Status display1 LED
Status display presentYes
Connector
Connection 1
Typefree cable end
Connection 2
TypeValve connector A
Connection 3
TypeValve connector A
Cable/line
Cable length1 m
0.1 m
PUR/PVC, 0.75 mm², black [116]
Dimensional drawinglzxrarnasf.jpg
Cable weight57 kg/km
UL AWM Style20549
Number of positions4
Shieldedno
Cable typePUR/PVC, 0.75 mm², black [116]
Conductor structure signal line24x 0.20 mm
AWG signal line18
Conductor cross section4x 0.75 mm²
Wire diameter incl. insulation1.7 mm ±0.05 mm
External cable diameter6.30 mm ±0.2 mm
Outer sheath, materialPUR
External sheath, colorblack
Conductor materialBare Cu litz wires
Material wire insulationPVC
Single wire, colorblack 1, black 2, black 3, green/yellow
Overall twist4 wires, twisted
Max. conductor resistance26 Ω/km (at 20 °C)
Insulation resistance≥ 20 MΩ*km
Nominal voltage, cable300 V
Test voltage1200 V
Smallest bending radius, fixed installation63 mm
Flame resistanceaccording to DIN VDE 0482
According to DIN EN 50265-2-1
in acc. with UL FT-2
Ambient temperature (operation)-5 °C ... 80 °C (Cable, flexible installation)
-40 °C ... 80 °C (cable, fixed installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
Ambient temperature (operation)-25 °C ... 85 °C (valve plug)
Standards and regulations
Valve connector
Standard designationValve connector
Standards/specificationsEN 175301-803

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
