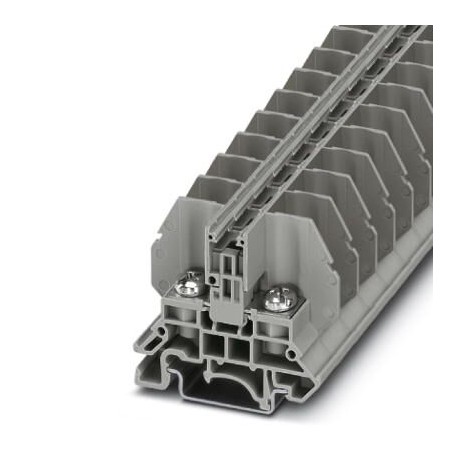

PHOENIX CONTACT RSC 5 CUS RSC 5 CUS 3058144 PHOENIX CONTACT Feed-through terminal block with bolt connection method, cross section: 0... View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RSC 5 CUS 3058144 PHOENIX CONTACT Feed-through terminal block with bolt connection method, cross section: 0...

RSC 5 CUS

3058144

PHOENIX CONTACT

50 Pcs.

Feed-through terminal block with bolt connection method, cross section: 0.1 - 10 mm², AWG: 26 - 8, width 13 mm, color: gray

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Feed-through terminal block with bolt connection method, cross section: 0.1 - 10 mm², AWG: 26 - 8, width 13 mm, color: gray

Key Commercial Data

Orderkey3058144
Packing unit1
GTIN4055626290195
Custom tariff number85369010

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 4.027141120
eCl@ss 4.127141120
eCl@ss 5.027141120
eCl@ss 5.127141120
eCl@ss 6.027141100
eCl@ss 7.027141120
eCl@ss 8.027141120
eCl@ss 9.027141120

ETIM

ETIM 2.0EC000897
ETIM 3.0EC000897
ETIM 4.0EC000897
ETIM 5.0EC000897
ETIM 6.0EC000897
ETIM 7.0EC000897

UNSPSC

UNSPSC 6.0130211811
UNSPSC 7.090139121410
UNSPSC 1139121410
UNSPSC 12.0139121410
UNSPSC 13.239121410

ETIM for 3058144 Terminal blocks (EC000897)
Feature Name Feature Value
Rated current In (EF008250) 57 A
Rated voltage (EF000228) 800 V
Type of electrical connection 1 (EF002526) Bolt connection
Type of electrical connection 2 (EF002527) Bolt connection
Number of clamp positions per level (EF002660) 2
Suitable for conductor material (EF012572) Aluminium/copper
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 13 mm
Height (EF000040) 53.3 mm
Depth (EF000049) 47.1 mm
Closing plate required (EF002525) Yes
Colour (EF000007) Grey
Internally connected stages (EF002661) Yes
