View larger
Images are for illustrative purposes only. Please refer to data sheet for details

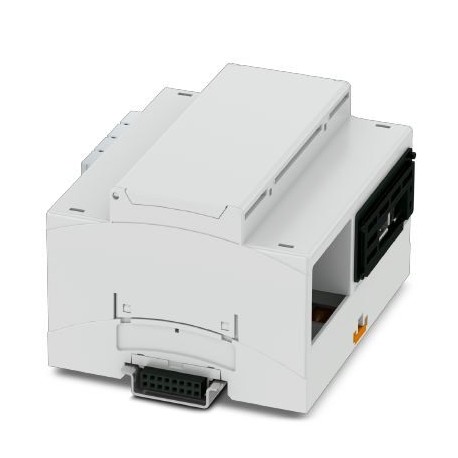

RPI-BC 107,6 EXT DEV-KIT KMGY 1107460 PHOENIX CONTACT DIN rail housing for Raspberry Pi computers (suitable ..
RPI-BC 107,6 EXT DEV-KIT KMGY
1107460
PHOENIX CONTACT
1 Pcs.
DIN rail housing for Raspberry Pi computers (suitable for Raspberry Pi A+, B+, B2, B3, B4); set consisting of lower part, upper part, cover, perfboard, and holder for connecting the HBUS and GPIO strip; housing in accordance with DIN 43880
DIN rail housing for Raspberry Pi computer (suitable for Raspberry Pi A+, B+, B2, B3, B4); set consisting of the bottom, top, cover, perforated frame plates and brackets for the connection of the HBUS and GPIO strip; Housing according to DIN43880
Automation > Electronic enclosure
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Back to top
Back to top
Back to top
Back to top
Item properties
| Brief article description | Electronic housing |
|---|---|
| Type | RPI-BC 107,6 EXT DEV-KIT KMGY |
| Order No. | 1107460 |
| Housing type | DIN rail housing |
| Type | Housing set |
| Max. IP code to attain | IP20 |
| Mounting type | Snap in |
Material data
| Color (RAL) | light gray (7035) |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Housing material | Polycarbonate |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
Classifications
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Other |
| Colour (EF000007) | Grey |
