FLK 40/EZ-DR/ 50/SLC 2294610 PHOENIX CONTACT Cable

FLK 40/EZ-DR/ 50/SLC

2294610

PHOENIX CONTACT

1 Pcs.

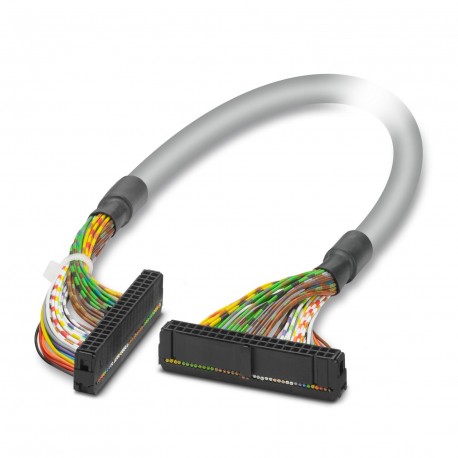

Cable Ready-made round cable; control: Allen-Bradley SLC 500 (OB 32, IB 32); Connection 1: Female IDC/FLK connection (1x 40-poles); Connection 2: Female IDC/FLK connection (1x 40-pole); Cable length: 0.5 m

Cables > PLC connection cable
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2294610
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 478 (C-5-2017)
GTIN4017918148980
Weight per Piece (excluding packing)80.700 g
Custom tariff number85444290
Country of originDE (Germany)

General

Nominal voltage UN< 50 V AC
60 V DC
Max. current carrying capacity per path1 A
Max. conductor resistance0.16 Ω/m
Length of cable0.5 m
Single wire, cross section0.14 mm²
Single wire, cross section [AWG]26
Conductor construction: Number of litz wires:7
Single wire, materialCu tin-plated
Test voltage500 V AC (50 Hz, 1 min.)
External diameter10 mm
Cable, preassemblyInsulation displacement, IEC 60352-4/DIN EN 60352-4
Shieldingno

Environmental conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Flame resistanceIEC 60332-1
DIN VDE 0482 Part 332-1

Connector 1

Connection nameField level
Connection methodIDC/FLK socket strip
Number of connections1
Number of positions40
Pitch2.54 mm

Connector 2

Connection nameController level
Connection methodIDC/FLK socket strip
Number of connections1
Number of positions40
Channels which can be connected32
Pitch2.54 mm

Supported controller

ControllerALLEN-BRADLEY SLC 500
- suitable I/O card1746 OB 32
1746 OV 32
1746 IB 32
1746 IV 32

Standards and Regulations

Flame resistanceIEC 60332-1
DIN VDE 0482 Part 332-1
Standards/regulationsDIN EN 60352-4
IEC 352-4

Color code

Connector 1 = connector 2 (optional) = wire colorIDC/FLK40 (1) = IDC/FLK40 (1) = black
IDC/FLK40 (2) = IDC/FLK40 (2) = brown
IDC/FLK40 (3) = IDC/FLK40 (3) = red
IDC/FLK40 (4) = IDC/FLK40 (4) = orange
IDC/FLK40 (5) = IDC/FLK40 (5) = yellow
IDC/FLK40 (6) = IDC/FLK40 (6) = green
IDC/FLK40 (7) = IDC/FLK40 (7) = blue
IDC/FLK40 (8) = IDC/FLK40 (8) = violet
IDC/FLK40 (9) = IDC/FLK40 (9) = gray
IDC/FLK40 (10) = IDC/FLK40 (10) = white
IDC/FLK40 (11) = IDC/FLK40 (11) = white-black
IDC/FLK40 (12) = IDC/FLK40 (12) = white-brown
IDC/FLK40 (13) = IDC/FLK40 (13) = white-red
IDC/FLK40 (14) = IDC/FLK40 (14) = white-orange
IDC/FLK40 (15) = IDC/FLK40 (15) = white-yellow
IDC/FLK40 (16) = IDC/FLK40 (16) = white-green
IDC/FLK40 (17) = IDC/FLK40 (17) = white-blue
IDC/FLK40 (18) = IDC/FLK40 (18) = white-violet
IDC/FLK40 (19) = IDC/FLK40 (19) = white-gray
IDC/FLK40 (20) = IDC/FLK40 (20) = brown-black
IDC/FLK40 (21) = IDC/FLK40 (21) = brown-red
IDC/FLK40 (22) = IDC/FLK40 (22) = brown-orange
IDC/FLK40 (23) = IDC/FLK40 (23) = brown-yellow
IDC/FLK40 (24) = IDC/FLK40 (24) = brown-green
IDC/FLK40 (25) = IDC/FLK40 (25) = brown-blue
IDC/FLK40 (26) = IDC/FLK40 (26) = brown-violet
IDC/FLK40 (27) = IDC/FLK40 (27) = brown-gray
IDC/FLK40 (28) = IDC/FLK40 (28) = brown-white
IDC/FLK40 (29) = IDC/FLK40 (29) = green-black
IDC/FLK40 (30) = IDC/FLK40 (30) = green-brown
IDC/FLK40 (31) = IDC/FLK40 (31) = green-red
IDC/FLK40 (32) = IDC/FLK40 (32) = green-orange
IDC/FLK40 (33) = IDC/FLK40 (33) = green-blue
IDC/FLK40 (34) = IDC/FLK40 (34) = green-violet
IDC/FLK40 (35) = IDC/FLK40 (35) = green-gray
IDC/FLK40 (36) = IDC/FLK40 (36) = green-white
IDC/FLK40 (37) = IDC/FLK40 (37) = yellow-black
IDC/FLK40 (38) = IDC/FLK40 (38) = yellow-brown
IDC/FLK40 (39) = IDC/FLK40 (39) = yellow-red
IDC/FLK40 (40) = IDC/FLK40 (40) = yellow-orange

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 5
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2294610 PLC's (EC000237)
Feature Name Feature Value
Function (EF000030) PLC - other devices
Length (EF001438) 0.5 m
Suitable for input board PLC (EF008271) Yes
Suitable for output card PLC (EF008272) Yes
Suitable for digital signals (EF008273) Yes
Suitable for analogue signals (EF008274) No
Type of electrical connection, field-sided (EF005525) Other
Type of electrical connection, box-sided (EF005524) Other
Number of poles (EF001391) 40
