FLK 40/EZ-DR/ 400/KONFEK 2289052 PHOENIX CONTACT Cable

FLK 40/EZ-DR/ 400/KONFEK

2289052

PHOENIX CONTACT

1 Pcs.

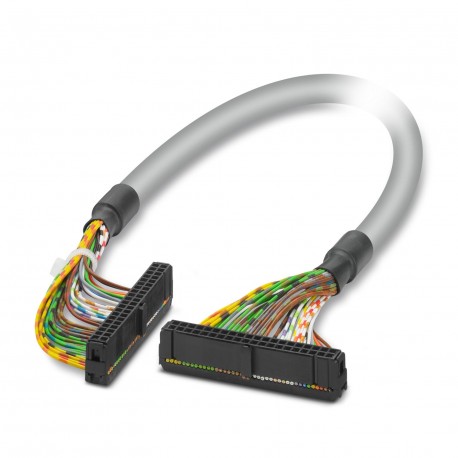

Cable Ready-made round cable; Connection 1: Female IDC/FLK connection (1x 40-poles); Connection 2: Female IDC/FLK connection (1x 40-pole); Cable length: 4 m Round cable set; connection 1: IDC/FLK socket strip (1x 40-position); connection 2: IDC/FLK socket strip (1x 40-position); Cable length: 4 m

Cables > PLC connection cable
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2289052
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 589 (C-5-2017)
GTIN4017918057442
Weight per Piece (excluding packing)565.000 g
Custom tariff number85444290
Country of originDE (Germany)

General

Nominal voltage UN< 50 V AC
60 V DC
Max. current carrying capacity per path1 A
Max. conductor resistance0.16 Ω/m
Length of cable4 m
Single wire, cross section0.14 mm²
Single wire, cross section [AWG]26
Conductor construction: Number of litz wires:7
Single wire, materialCu tin-plated
External diameter9.9 mm
Cable, preassemblyInsulation displacement, IEC 60352-4/DIN EN 60352-4
Shieldingno
Outer sheath, materialPVC
External sheath, colorgray RAL 7035

Environmental conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Flame resistanceIEC 60332-1
DIN VDE 0482 Part 332-1
Resistance to oilDIN VDE 0472 Part 803, test type B
Gasoline resistanceagainst occasional splashes

Connector 1

Connection nameField level
Connection methodIDC/FLK socket strip
Number of connections1
Number of positions40
Pitch2.54 mm

Connector 2

Connection nameController level
Connection methodIDC/FLK socket strip
Number of connections1
Number of positions40
Pitch2.54 mm

Supported controller

ControllerSIEMENS S5-95U/ET100U S5-100U/ET200U

Color code

Connector 1 = connector 2 (optional) = wire colorIDC/FLK40 (1) = IDC/FLK40 (1) = black
IDC/FLK40 (2) = IDC/FLK40 (2) = brown
IDC/FLK40 (3) = IDC/FLK40 (3) = red
IDC/FLK40 (4) = IDC/FLK40 (4) = orange
IDC/FLK40 (5) = IDC/FLK40 (5) = yellow
IDC/FLK40 (6) = IDC/FLK40 (6) = green
IDC/FLK40 (7) = IDC/FLK40 (7) = blue
IDC/FLK40 (8) = IDC/FLK40 (8) = violet
IDC/FLK40 (9) = IDC/FLK40 (9) = gray
IDC/FLK40 (10) = IDC/FLK40 (10) = white
IDC/FLK40 (11) = IDC/FLK40 (11) = white-black
IDC/FLK40 (12) = IDC/FLK40 (12) = white-brown
IDC/FLK40 (13) = IDC/FLK40 (13) = white-red
IDC/FLK40 (14) = IDC/FLK40 (14) = white-orange
IDC/FLK40 (15) = IDC/FLK40 (15) = white-yellow
IDC/FLK40 (16) = IDC/FLK40 (16) = white-green
IDC/FLK40 (17) = IDC/FLK40 (17) = white-blue
IDC/FLK40 (18) = IDC/FLK40 (18) = white-violet
IDC/FLK40 (19) = IDC/FLK40 (19) = white-gray
IDC/FLK40 (20) = IDC/FLK40 (20) = brown-black
IDC/FLK40 (21) = IDC/FLK40 (21) = brown-red
IDC/FLK40 (22) = IDC/FLK40 (22) = brown-orange
IDC/FLK40 (23) = IDC/FLK40 (23) = brown-yellow
IDC/FLK40 (24) = IDC/FLK40 (24) = brown-green
IDC/FLK40 (25) = IDC/FLK40 (25) = brown-blue
IDC/FLK40 (26) = IDC/FLK40 (26) = brown-violet
IDC/FLK40 (27) = IDC/FLK40 (27) = brown-gray
IDC/FLK40 (28) = IDC/FLK40 (28) = brown-white
IDC/FLK40 (29) = IDC/FLK40 (29) = green-black
IDC/FLK40 (30) = IDC/FLK40 (30) = green-brown
IDC/FLK40 (31) = IDC/FLK40 (31) = green-red
IDC/FLK40 (32) = IDC/FLK40 (32) = green-orange
IDC/FLK40 (33) = IDC/FLK40 (33) = green-blue
IDC/FLK40 (34) = IDC/FLK40 (34) = green-violet
IDC/FLK40 (35) = IDC/FLK40 (35) = green-gray
IDC/FLK40 (36) = IDC/FLK40 (36) = green-white
IDC/FLK40 (37) = IDC/FLK40 (37) = yellow-black
IDC/FLK40 (38) = IDC/FLK40 (38) = yellow-brown
IDC/FLK40 (39) = IDC/FLK40 (39) = yellow-red
IDC/FLK40 (40) = IDC/FLK40 (40) = yellow-orange

Standards and Regulations

Flame resistanceIEC 60332-1
DIN VDE 0482 Part 332-1
Resistance to oilDIN VDE 0472 Part 803, test type B
Gasoline resistanceagainst occasional splashes
Connection in acc. with standardCUL

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2289052 PLC's (EC000237)
Feature Name Feature Value
Function (EF000030) PLC - other devices
Length (EF001438) 4 m
Suitable for input board PLC (EF008271) Yes
Suitable for output card PLC (EF008272) Yes
Suitable for digital signals (EF008273) Yes
Suitable for analogue signals (EF008274) Yes
Type of electrical connection, field-sided (EF005525) Other
Type of electrical connection, box-sided (EF005524) Other
Number of poles (EF001391) 40
