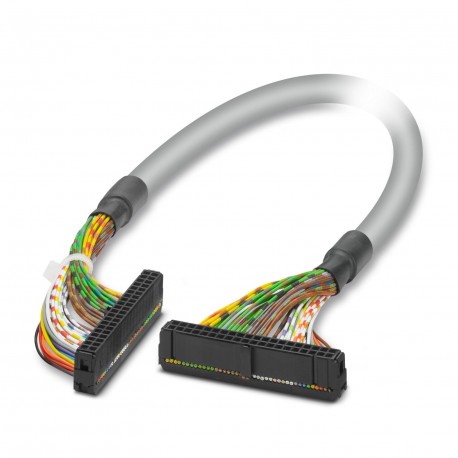

PHOENIX CONTACT FLK 40/EZ-DR/ 100/SLC FLK 40/EZ-DR/ 100/SLC 2294623 PHOENIX CONTACT Cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FLK 40/EZ-DR/ 100/SLC 2294623 PHOENIX CONTACT Cable

FLK 40/EZ-DR/ 100/SLC

2294623

PHOENIX CONTACT

1 Pcs.

Cable Ready-made round cable; control: Allen-Bradley SLC 500 (OB 32, IB 32); Connection 1: Female IDC/FLK connection (1x 40-poles); Connection 2: Female IDC/FLK connection (1x 40-pole); Cable length: 1 m Round cable set; controller: Allen-Bradley SLC 500 (OB 32, IB 32); connection 1: IDC/FLK socket strip (1x 40-position); connection 2: IDC/FLK socket strip (1x 40-position); cable length: 1 m

Cables > PLC connection cable
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSystem cable
Data management status
Article revision05
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP00
Degree of protection (Installation location)≥ IP54 (Installation location)
Ambient temperature (operation)-40 °C ... 70 °C (fixed installation)
-10 °C ... 70 °C (flexible installation)
Ambient temperature (storage/transport)-40 °C ... 80 °C
Altitude≤ 2000 m
Electrical properties
Operating voltage (AC)≤ 30 V AC
Operating voltage (DC)≤ 60 V DC
Nominal operating mode100% operating factor
Current (Per path, 50°C)≤ 1 A (Uncoiled, see derating)
Current (Per path, 70°C)≤ 0.6 A (Uncoiled, see derating)
Supported controller ALLEN-BRADLEY SLC 500
Suitable I/O card1746 OB 32
1746 OV 32
1746 IB 32
1746 IV 32
Cable/line
Cable length1 m
40X0.14 [PVC]
UL AWM Style2464/1061
Number of positions40
Shieldedno
Cable type40X0.14 [PVC]
Conductor typeRound cable set
Conductor structure signal line7x 0.16 mm
AWG signal line26
Conductor cross section40x 0.14 mm²
Wire diameter incl. insulation1 mm ±0.03 mm
External cable diameter9.90 mm ±0.4 mm
Outer sheath, materialSemi-rigid PVC
External sheath, colorgray
Conductor materialTin-plated Cu litz wires
Cable resistance≤ 145 Ω/km (20 °C)
Insulation resistance≥ 20 MΩ*km (20 °C)
Smallest bending radius, fixed installation82 mm
Smallest bending radius, movable installation155 mm
Dynamic load capacity (bending)Max. bending cycles: 5000 (at a radius of ≥ 15x outside diameter)
Halogen-freeno
Flame resistanceIEC 60332-1-2 (raw cable)
VDE 0842, Part 332-1-2 (raw cable)
IEC 60332-3-22 (raw cable)
UL VW-1
CSA FT-1
Resistance to oilcan withstand occasional splashes (raw cable)
Cable typeCable for one module
Color code
blackIDC/FLK40 (1) = IDC/FLK40 (1)
brownIDC/FLK40 (2) = IDC/FLK40 (2)
redIDC/FLK40 (3) = IDC/FLK40 (3)
orangeIDC/FLK40 (4) = IDC/FLK40 (4)
yellowIDC/FLK40 (5) = IDC/FLK40 (5)
greenIDC/FLK40 (6) = IDC/FLK40 (6)
blueIDC/FLK40 (7) = IDC/FLK40 (7)
violetIDC/FLK40 (8) = IDC/FLK40 (8)
grayIDC/FLK40 (9) = IDC/FLK40 (9)
whiteIDC/FLK40 (10) = IDC/FLK40 (10)
white-blackIDC/FLK40 (11) = IDC/FLK40 (11)
white-brownIDC/FLK40 (12) = IDC/FLK40 (12)
white-redIDC/FLK40 (13) = IDC/FLK40 (13)
white-orangeIDC/FLK40 (14) = IDC/FLK40 (14)
white-yellowIDC/FLK40 (15) = IDC/FLK40 (15)
white-greenIDC/FLK40 (16) = IDC/FLK40 (16)
white-blueIDC/FLK40 (17) = IDC/FLK40 (17)
white-violetIDC/FLK40 (18) = IDC/FLK40 (18)
white-grayIDC/FLK40 (19) = IDC/FLK40 (19)
brown-blackIDC/FLK40 (20) = IDC/FLK40 (20)
brown-redIDC/FLK40 (21) = IDC/FLK40 (21)
brown-orangeIDC/FLK40 (22) = IDC/FLK40 (22)
brown-yellowIDC/FLK40 (23) = IDC/FLK40 (23)
brown-greenIDC/FLK40 (24) = IDC/FLK40 (24)
brown-blueIDC/FLK40 (25) = IDC/FLK40 (25)
brown-violetIDC/FLK40 (26) = IDC/FLK40 (26)
brown-grayIDC/FLK40 (27) = IDC/FLK40 (27)
brown-whiteIDC/FLK40 (28) = IDC/FLK40 (28)
green-blackIDC/FLK40 (29) = IDC/FLK40 (29)
green-brownIDC/FLK40 (30) = IDC/FLK40 (30)
green-redIDC/FLK40 (31) = IDC/FLK40 (31)
green-orangeIDC/FLK40 (32) = IDC/FLK40 (32)
green-blueIDC/FLK40 (33) = IDC/FLK40 (33)
green-violetIDC/FLK40 (34) = IDC/FLK40 (34)
green-grayIDC/FLK40 (35) = IDC/FLK40 (35)
green-whiteIDC/FLK40 (36) = IDC/FLK40 (36)
yellow-blackIDC/FLK40 (37) = IDC/FLK40 (37)
yellow-brownIDC/FLK40 (38) = IDC/FLK40 (38)
yellow-redIDC/FLK40 (39) = IDC/FLK40 (39)
yellow-orangeIDC/FLK40 (40) = IDC/FLK40 (40)
Connection data
Connection 1
Connection in acc. with standardbased on IEC 60603-13
Connection methodIDC/FLK socket strip
Number of connections1
Number of positions40
Insertion/withdrawal cycles> 50
Pitch2.54 mm
Connection 2
Connection in acc. with standardbased on IEC 60603-13
Connection methodIDC/FLK socket strip
Number of connections1
Number of positions40
Insertion/withdrawal cycles> 50
Pitch2.54 mm
Notes
Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

ETIM for 2294623 PLC's (EC000237)
Feature Name Feature Value
Function (EF000030) PLC - other devices
Length (EF001438) 1 m
Suitable for input board PLC (EF008271) Yes
Suitable for output card PLC (EF008272) Yes
Suitable for digital signals (EF008273) Yes
Suitable for analogue signals (EF008274) No
Type of electrical connection, field-sided (EF005525) Other
Type of electrical connection, box-sided (EF005524) Other
Number of poles (EF001391) 40

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
