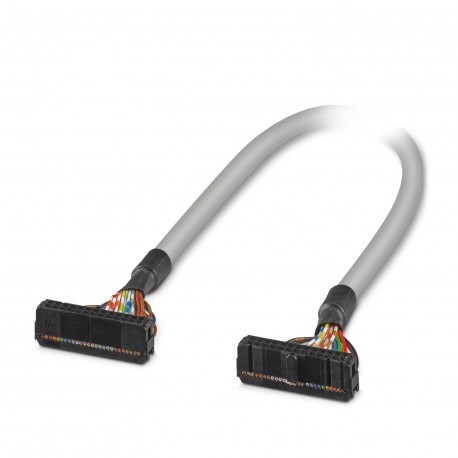

FLK 26/EZ-DR/ 200/KONFEK 2299411 PHOENIX CONTACT Cable

FLK 26/EZ-DR/ 200/KONFEK

2299411

PHOENIX CONTACT

1 Pcs.

Cable Ready-made round cable; Connection 1: IDC/FLK Connection Female (1x 26-poles); Connection 2: IDC/FLK Connection Female (1x 26-poles); Cable length: 2 m Pre-assembled round cable; Connector 1: IDC/FLK socket header (1x 26-pin); Connector 2: IDC/FLK socket header (1x 26-pin); Cable length: 2 m

Cables > PLC connection cable
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2299411
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 589 (C-5-2017)
GTIN4017918886134
Weight per Piece (excluding packing)203.000 g
Custom tariff number85444290
Country of originDE (Germany)

General

Nominal voltage UN< 50 V AC
60 V DC
Max. current carrying capacity per path1 A
Max. conductor resistance0.16 Ω/m
Length of cable2 m
Single wire, cross section0.14 mm²
Single wire, cross section [AWG]26
Conductor construction: Number of litz wires:7
Single wire, materialCu tin-plated
External diameter7.8 mm
Cable, preassemblyInsulation displacement, IEC 60352-4/DIN EN 60352-4
Shieldingno
Outer sheath, materialPVC
External sheath, colorgray RAL 7035

Environmental conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Flame resistanceIEC 60332-1
DIN VDE 0482 Part 332-1
Resistance to oilDIN VDE 0472 Part 803, test type B
Gasoline resistanceagainst occasional splashes

Connector 1

Connection nameField level
Connection methodIDC/FLK socket strip
Number of connections1
Number of positions26
Pitch2.54 mm

Connector 2

Connection nameController level
Connection methodIDC/FLK socket strip
Number of connections1
Number of positions26
Pitch2.54 mm

Supported controller

Controlleruniversal

Color code

Connector 1 = connector 2 (optional) = wire colorIDC/FLK26 (1) = IDC/FLK26 (1) = black
IDC/FLK26 (2) = IDC/FLK26 (2) = brown
IDC/FLK26 (3) = IDC/FLK26 (3) = red
IDC/FLK26 (4) = IDC/FLK26 (4) = orange
IDC/FLK26 (5) = IDC/FLK26 (5) = yellow
IDC/FLK26 (6) = IDC/FLK26 (6) = green
IDC/FLK26 (7) = IDC/FLK26 (7) = blue
IDC/FLK26 (8) = IDC/FLK26 (8) = violet
IDC/FLK26 (9) = IDC/FLK26 (9) = gray
IDC/FLK26 (10) = IDC/FLK26 (10) = white
IDC/FLK26 (11) = IDC/FLK26 (11) = white-black
IDC/FLK26 (12) = IDC/FLK26 (12) = white-brown
IDC/FLK26 (13) = IDC/FLK26 (13) = white-red
IDC/FLK26 (14) = IDC/FLK26 (14) = white-orange
IDC/FLK26 (15) = IDC/FLK26 (15) = white-yellow
IDC/FLK26 (16) = IDC/FLK26 (16) = white-green
IDC/FLK26 (17) = IDC/FLK26 (17) = white-blue
IDC/FLK26 (18) = IDC/FLK26 (18) = white-violet
IDC/FLK26 (19) = IDC/FLK26 (19) = white-gray
IDC/FLK26 (20) = IDC/FLK26 (20) = brown-black
IDC/FLK26 (21) = IDC/FLK26 (21) = brown-red
IDC/FLK26 (22) = IDC/FLK26 (22) = brown-orange
IDC/FLK26 (23) = IDC/FLK26 (23) = brown-yellow
IDC/FLK26 (24) = IDC/FLK26 (24) = brown-green
IDC/FLK26 (25) = IDC/FLK26 (25) = brown-blue
IDC/FLK26 (26) = IDC/FLK26 (26) = brown-violet

Standards and Regulations

Flame resistanceIEC 60332-1
DIN VDE 0482 Part 332-1
Resistance to oilDIN VDE 0472 Part 803, test type B
Gasoline resistanceagainst occasional splashes

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2299411 PLC's (EC000237)
Feature Name Feature Value
Function (EF000030) PLC - other devices
Length (EF001438) 2 m
Suitable for input board PLC (EF008271) Yes
Suitable for output card PLC (EF008272) Yes
Suitable for digital signals (EF008273) Yes
Suitable for analogue signals (EF008274) Yes
Type of electrical connection, field-sided (EF005525) Other
Type of electrical connection, box-sided (EF005524) Other
Number of poles (EF001391) 26

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
