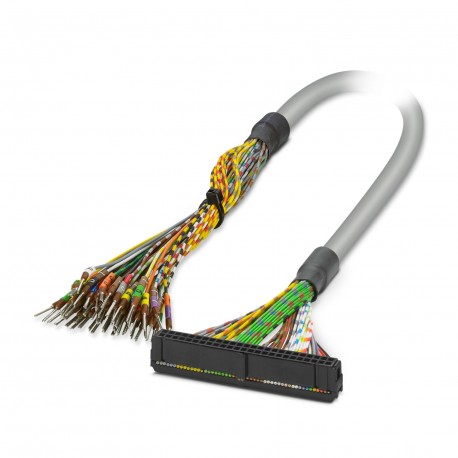

PHOENIX CONTACT CABLE-FLK50/OE/0,14/ 300 CABLE-FLK50/OE/0,14/ 300 2305392 PHOENIX CONTACT Cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CABLE-FLK50/OE/0,14/ 300 2305392 PHOENIX CONTACT Cable

CABLE-FLK50/OE/0,14/ 300

2305392

PHOENIX CONTACT

1 Pcs.

Cable Ready-made round cable; connection 1: Single conductors (50-poles) (Conductors are labeled and equipped with ferrules); Connection 2: Female IDC/FLK connection (1x 50-poles); Cable length: 3 m Headed cable; Connection 1: Single wires (50-pole) (The conductors are marked and equipped with a cable lug.); Connection 2: IDC/FLK female conductor (1x 50-pin); Cable length: 3 m

Cables > PLC connection cable
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2305392
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 585 (C-5-2017)
GTIN4046356039079
Weight per Piece (excluding packing)476.400 g
Custom tariff number85444290
Country of originDE (Germany)

General

Nominal voltage UN< 50 V AC
60 V DC
Max. current carrying capacity per path1 A
Max. conductor resistance0.16 Ω/m
Length of cable3 m
Single wire, cross section0.14 mm²
Single wire, cross section [AWG]26
Conductor construction: Number of litz wires:7
Single wire, materialCu tin-plated
Test voltage0.8 kV
External diameter10.3 mm
Cable, preassemblyInsulation displacement, IEC 60352-4/DIN EN 60352-4
Shieldingno

Environmental conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Flame resistanceIEC 60332-1
DIN VDE 0482 Part 332-1

Connector 1

Connection nameField level
Connection methodIDC/FLK socket strip
Number of connections1
Number of positions50
Pitch2.54 mm

Connector 2

Connection nameController level
Connection methodSingle wires
Number of positions50
NoteThe wires are marked and fitted with ferrules.

Supported controller

Controlleruniversal

Color code

Connector 1 = connector 2 (optional) = wire colorIDC/FLK50 (1) = black
IDC/FLK50 (2) = brown
IDC/FLK50 (3) = red
IDC/FLK50 (4) = orange
IDC/FLK50 (5) = yellow
IDC/FLK50 (6) = green
IDC/FLK50 (7) = blue
IDC/FLK50 (8) = violet
IDC/FLK50 (9) = gray
IDC/FLK50 (10) = white
IDC/FLK50 (11) = white-black
IDC/FLK50 (12) = white-brown
IDC/FLK50 (13) = white-red
IDC/FLK50 (14) = white-orange
IDC/FLK50 (15) = white-yellow
IDC/FLK50 (16) = white-green
IDC/FLK50 (17) = white-blue
IDC/FLK50 (18) = white-violet
IDC/FLK50 (19) = white-gray
IDC/FLK50 (20) = brown-black
IDC/FLK50 (21) = brown-red
IDC/FLK50 (22) = brown-orange
IDC/FLK50 (23) = brown-yellow
IDC/FLK50 (24) = brown-green
IDC/FLK50 (25) = brown-blue
IDC/FLK50 (26) = brown-violet
IDC/FLK50 (27) = brown-gray
IDC/FLK50 (28) = brown-white
IDC/FLK50 (29) = green-black
IDC/FLK50 (30) = green-brown
IDC/FLK50 (31) = green-red
IDC/FLK50 (32) = green-orange
IDC/FLK50 (33) = green-blue
IDC/FLK50 (34) = green-violet
IDC/FLK50 (35) = green-gray
IDC/FLK50 (36) = green-white
IDC/FLK50 (37) = yellow-black
IDC/FLK50 (38) = yellow-brown
IDC/FLK50 (39) = yellow-red
IDC/FLK50 (40) = yellow-orange
IDC/FLK50 (41) = yellow-blue
IDC/FLK50 (42) = yellow-violet
IDC/FLK50 (43) = yellow-gray
IDC/FLK50 (44) = yellow-white
IDC/FLK50 (45) = gray-black
IDC/FLK50 (46) = gray-brown
IDC/FLK50 (47) = gray-red
IDC/FLK50 (48) = gray-orange
IDC/FLK50 (49) = gray-yellow
IDC/FLK50 (50) = gray-green

Standards and Regulations

Flame resistanceIEC 60332-1
DIN VDE 0482 Part 332-1
Connection in acc. with standardCUL

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2305392 PLC's (EC000237)
Feature Name Feature Value
Function (EF000030) PLC - other devices
Length (EF001438) 3 m
Suitable for input board PLC (EF008271) Yes
Suitable for output card PLC (EF008272) Yes
Suitable for digital signals (EF008273) Yes
Suitable for analogue signals (EF008274) Yes
Type of electrical connection, field-sided (EF005525) Other
Type of electrical connection, box-sided (EF005524) Other
Number of poles (EF001391) 50
