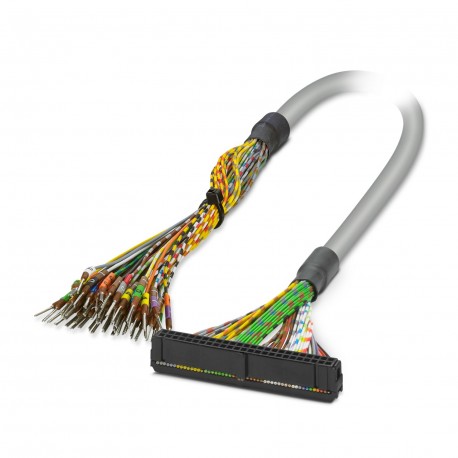

PHOENIX CONTACT CABLE-FLK50/OE/0,14/ 150 CABLE-FLK50/OE/0,14/ 150 2305363 PHOENIX CONTACT Cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CABLE-FLK50/OE/0,14/ 150 2305363 PHOENIX CONTACT Cable

CABLE-FLK50/OE/0,14/ 150

2305363

PHOENIX CONTACT

1 Pcs.

Cable Ready-made round cable; connection 1: Single conductors (50-poles) (Conductors are labeled and equipped with ferrules); Connection 2: Female IDC/FLK connection (1x 50-poles); Cable length: 1.5 m Round cable set; connection 1: Single wires (50-position) (The wires are marked and fitted with ferrules); connection 2: IDC/FLK socket strip (1x 50-position); cable length: 1.5 m

Cables > PLC connection cable
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSystem cable
Data management status
Article revision06
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP00
Degree of protection (Installation location)≥ IP54 (Installation location)
Ambient temperature (operation)-40 °C ... 70 °C (fixed installation)
-10 °C ... 70 °C (flexible installation)
Ambient temperature (storage/transport)-40 °C ... 80 °C
Altitude≤ 2000 m
Electrical properties
Operating voltage (AC)≤ 30 V AC
Operating voltage (DC)≤ 60 V DC
Nominal operating mode100% operating factor
Current (Per path, 50°C)≤ 1 A (Uncoiled, see derating)
Current (Per path, 70°C)≤ 0.6 A (Uncoiled, see derating)
Cable/line
Cable length1.5 m
50X0.14 [PVC]
UL AWM Style2464/1061
Number of positions50
Shieldedno
Cable type50X0.14 [PVC]
Conductor typeRound cable set
Conductor structure signal line7x 0.16 mm
AWG signal line26
Conductor cross section50x 0.14 mm²
Wire diameter incl. insulation1 mm ±0.03 mm
External cable diameter10.30 mm ±0.4 mm
Outer sheath, materialSemi-rigid PVC
External sheath, colorgray
Conductor materialTin-plated Cu litz wires
Cable resistance≤ 145 Ω/km (20 °C)
Insulation resistance≥ 20 MΩ*km (20 °C)
Smallest bending radius, fixed installation86 mm
Smallest bending radius, movable installation161 mm
Dynamic load capacity (bending)Max. bending cycles: 5000 (at a radius of ≥ 15x outside diameter)
Halogen-freeno
Flame resistanceIEC 60332-1-2 (raw cable)
VDE 0842, Part 332-1-2 (raw cable)
IEC 60332-3-22 (raw cable)
UL VW-1
CSA FT-1
Resistance to oilcan withstand occasional splashes (raw cable)
Cable typeCable for one module
Color code
blackIDC/FLK50 (1) = ()
brownIDC/FLK50 (2) = ()
redIDC/FLK50 (3) = ()
orangeIDC/FLK50 (4) = ()
yellowIDC/FLK50 (5) = ()
greenIDC/FLK50 (6) = ()
blueIDC/FLK50 (7) = ()
violetIDC/FLK50 (8) = ()
grayIDC/FLK50 (9) = ()
whiteIDC/FLK50 (10) = ()
white-blackIDC/FLK50 (11) = ()
white-brownIDC/FLK50 (12) = ()
white-redIDC/FLK50 (13) = ()
white-orangeIDC/FLK50 (14) = ()
white-yellowIDC/FLK50 (15) = ()
white-greenIDC/FLK50 (16) = ()
white-blueIDC/FLK50 (17) = ()
white-violetIDC/FLK50 (18) = ()
white-grayIDC/FLK50 (19) = ()
brown-blackIDC/FLK50 (20) = ()
brown-redIDC/FLK50 (21) = ()
brown-orangeIDC/FLK50 (22) = ()
brown-yellowIDC/FLK50 (23) = ()
brown-greenIDC/FLK50 (24) = ()
brown-blueIDC/FLK50 (25) = ()
brown-violetIDC/FLK50 (26) = ()
brown-grayIDC/FLK50 (27) = ()
brown-whiteIDC/FLK50 (28) = ()
green-blackIDC/FLK50 (29) = ()
green-brownIDC/FLK50 (30) = ()
green-redIDC/FLK50 (31) = ()
green-orangeIDC/FLK50 (32) = ()
green-blueIDC/FLK50 (33) = ()
green-violetIDC/FLK50 (34) = ()
green-grayIDC/FLK50 (35) = ()
green-whiteIDC/FLK50 (36) = ()
yellow-blackIDC/FLK50 (37) = ()
yellow-brownIDC/FLK50 (38) = ()
yellow-redIDC/FLK50 (39) = ()
yellow-orangeIDC/FLK50 (40) = ()
yellow-blueIDC/FLK50 (41) = ()
yellow-violetIDC/FLK50 (42) = ()
yellow-grayIDC/FLK50 (43) = ()
yellow-whiteIDC/FLK50 (44) = ()
gray-blackIDC/FLK50 (45) = ()
gray-brownIDC/FLK50 (46) = ()
gray-redIDC/FLK50 (47) = ()
gray-orangeIDC/FLK50 (48) = ()
gray-yellowIDC/FLK50 (49) = ()
gray-greenIDC/FLK50 (50) = ()
Connection data
Connection 1
Connection methodSingle wires
Stripping length (Sheath) 150 mm
Number of positions50
NoteThe wires are marked and fitted with ferrules
Connection 2
Connection in acc. with standardbased on IEC 60603-13
Connection methodIDC/FLK socket strip
Number of connections1
Number of positions50
Insertion/withdrawal cycles> 50
Pitch2.54 mm
Notes
Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

ETIM for 2305363 PLC's (EC000237)
Feature Name Feature Value
Function (EF000030) PLC - other devices
Length (EF001438) 1.5 m
Suitable for input board PLC (EF008271) Yes
Suitable for output card PLC (EF008272) Yes
Suitable for digital signals (EF008273) Yes
Suitable for analogue signals (EF008274) Yes
Type of electrical connection, field-sided (EF005525) Other
Type of electrical connection, box-sided (EF005524) Other
Number of poles (EF001391) 50
