View larger
Images are for illustrative purposes only. Please refer to data sheet for details

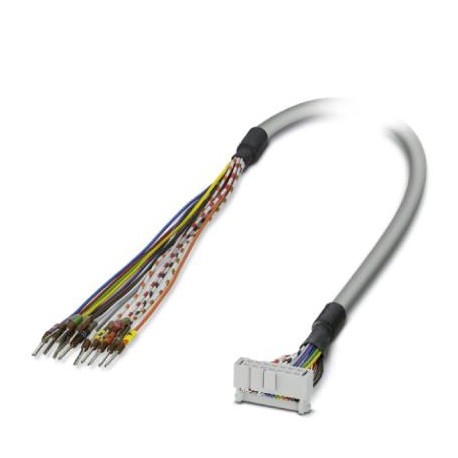

CABLE-FLK14/OE/0,14/ 300 2305295 PHOENIX CONTACT Cable
CABLE-FLK14/OE/0,14/ 300
2305295
PHOENIX CONTACT
1 Pcs.
Cable
Ready-made round cable; connection 1: Single conductors (14-poles) (Conductors are labeled and equipped with ferrules); Connection 2: IDC/FLK Connection Female (1x 14-pole); Cable length: 3 m
Cables > PLC connection cable
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2305295 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 584 (C-5-2017) |
| GTIN | 4046356038973 |
| Weight per Piece (excluding packing) | 178.200 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Nominal voltage UN | < 50 V AC |
|---|---|
| 60 V DC | |
| Max. current carrying capacity per path | 1 A |
| Max. conductor resistance | 0.16 Ω/m |
| Length of cable | 3 m |
| Single wire, cross section | 0.14 mm² |
| Single wire, cross section [AWG] | 26 |
| Conductor construction: Number of litz wires: | 7 |
| Single wire, material | Cu tin-plated |
| Test voltage | 0.8 kV |
| External diameter | 6.4 mm |
| Cable, preassembly | Insulation displacement, IEC 60352-4/DIN EN 60352-4 |
| Shielding | no |
Environmental conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Flame resistance | IEC 60332-1 |
| DIN VDE 0482 Part 332-1 |
Connector 1
| Connection name | Field level |
|---|---|
| Connection method | IDC/FLK socket strip |
| Number of connections | 1 |
| Number of positions | 14 |
| Pitch | 2.54 mm |
Connector 2
| Connection name | Controller level |
|---|---|
| Connection method | Single wires |
| Number of positions | 14 |
| Note | The wires are marked and fitted with ferrules. |
Color code
| Connector 1 = connector 2 (optional) = wire color | IDC/FLK14 (1) = black |
|---|---|
| IDC/FLK14 (2) = brown | |
| IDC/FLK14 (3) = red | |
| IDC/FLK14 (4) = orange | |
| IDC/FLK14 (5) = yellow | |
| IDC/FLK14 (6) = green | |
| IDC/FLK14 (7) = blue | |
| IDC/FLK14 (8) = violet | |
| IDC/FLK14 (9) = gray | |
| IDC/FLK14 (10) = white | |
| IDC/FLK14 (11) = white-black | |
| IDC/FLK14 (12) = white-brown | |
| IDC/FLK14 (13) = white-red | |
| IDC/FLK14 (14) = white-orange |
Standards and Regulations
| Flame resistance | IEC 60332-1 |
|---|---|
| DIN VDE 0482 Part 332-1 | |
| Connection in acc. with standard | CUL |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Function (EF000030) | PLC - other devices |
| Length (EF001438) | 3 m |
| Suitable for input board PLC (EF008271) | Yes |
| Suitable for output card PLC (EF008272) | Yes |
| Suitable for digital signals (EF008273) | Yes |
| Suitable for analogue signals (EF008274) | Yes |
| Type of electrical connection, field-sided (EF005525) | Other |
| Type of electrical connection, box-sided (EF005524) | Other |
| Number of poles (EF001391) | 14 |
