View larger
Images are for illustrative purposes only. Please refer to data sheet for details

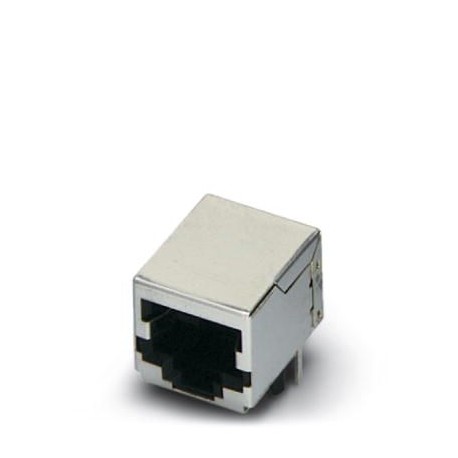

VS-08-BU-RJ45/LP-1 1688586 PHOENIX CONTACT RJ45 socket insert
VS-08-BU-RJ45/LP-1
1688586
PHOENIX CONTACT
5 Pcs.
RJ45 socket insert
RJ45 Female Insert, Single, for PCB Mounting, CAT5, 8 Poles, Shielded, with Elbowed Solder Pins
Connectors > Contact insert for rectangular connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1688586 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 85 (C-2-2013) |
| GTIN | 4017918622350 |
| Weight per Piece (excluding packing) | 12.500 g |
| Custom tariff number | 85366990 |
| Country of origin | CN (China) |
Mechanical characteristics
| Number of positions | 8 |
|---|---|
| Number of slots | 1 |
| Connection profile | RJ45 |
| Insertion/withdrawal cycles | ≥ 750 |
| Connection method | Solder connection |
| Degree of protection | IP20 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact carrier material | Thermoplastic |
| Contact material | Copper alloy |
| Contact surface material | Gold over nickel |
Electrical characteristics
| Number of positions | 8 |
|---|---|
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| GRP transmission properties | CAT5 (IEC 11801:2002) |
| Rated current | 1.5 A |
| Overvoltage category | II |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 72 V (DC) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
