View larger
Images are for illustrative purposes only. Please refer to data sheet for details

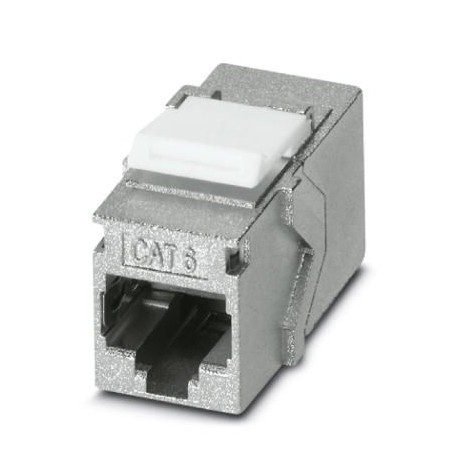

VS-08-BU-RJ45-6-MOD/BU 1653155 PHOENIX CONTACT RJ45 socket insert
VS-08-BU-RJ45-6-MOD/BU
1653155
PHOENIX CONTACT
5 Pcs.
RJ45 socket insert
RJ45 female insert, protection index: IP20, number of poles: 8, 1 GBit/s, CAT6, material: Zinc die-casting, connection type: Wave soldering contacts, Keystone
Connectors > Contact insert for rectangular connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1653155 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 355 (C-2-2017) |
| GTIN | 4017918970079 |
| Weight per Piece (excluding packing) | 8.840 g |
| Custom tariff number | 85366990 |
| Country of origin | CN (China) |
Mechanical characteristics
| Number of positions | 8 |
|---|---|
| Number of slots | 2 |
| Shielded | yes |
| Insertion/withdrawal cycles | ≥ 750 |
| Connection method | 2x RJ45 |
| Mounting type | Snap-in hook system |
| Insulation resistance | min. 500 MΩ |
| Degree of protection | IP20 |
| Type | RJ45 |
Ambient conditions
| Ambient temperature (operation) | -10 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | Zinc die-cast |
| Contact carrier material | ABS |
| Contact material | Phosphor bronze |
| Contact surface material | Gold over nickel |
| Height | 20 mm |
Electrical characteristics
| Number of positions | 8 |
|---|---|
| Transmission characteristics (category) | CAT6 Link |
| GRP transmission properties | CAT6 CAT6 Link |
| Transmission speed | 1 Gbps |
| Rated current | 1.5 A |
| Degree of pollution | 2 |
| Contact resistance | max. 20 mΩ |
| Rated voltage (III/3) | 72 V (DC) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
