View larger
Images are for illustrative purposes only. Please refer to data sheet for details

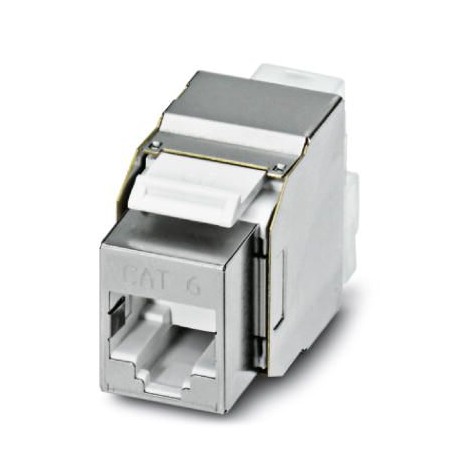

VS-08-BU-RJ45-6/KA/LSA 1653168 PHOENIX CONTACT RJ45 socket insert
VS-08-BU-RJ45-6/KA/LSA
1653168
PHOENIX CONTACT
5 Pcs.
RJ45 socket insert
RJ45 Female Insert, Modular (Keystone), CAT6, 8 Pole, Shielded, Wired (LSA), for Wire and Rigid Conductors AWG 26 ... 22
Automation > Fibre optic attenuator
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1653168 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 337 (C-4-2015) |
| GTIN | 4017918970086 |
| Weight per Piece (excluding packing) | 15.820 g |
| Custom tariff number | 85366990 |
| Country of origin | CN (China) |
Mechanical characteristics
| Number of positions | 8 |
|---|---|
| Number of slots | 1 |
| Shielded | yes |
| Insertion/withdrawal cycles | ≥ 1000 |
| Connection method | LSA |
| Conductor cross section | 0.13 mm² ... 0.25 mm² (solid) |
| 0.14 mm² ... 0.25 mm² (flexible) | |
| Connection cross section AWG | 26 ... 23 (solid) |
| 26 ... 23 (flexible) | |
| Max. cable diameter | 10 mm |
| Mounting type | Latching hook mounting |
| Degree of protection | IP20 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | PC+ABS |
| Contact material | Phosphor bronze |
| Contact surface material | Gold |
Electrical characteristics
| Number of positions | 8 |
|---|---|
| Nominal current IN | 2 A |
| GRP transmission properties | CAT6 |
| Transmission speed | 1 Gbps |
| Rated current | 2 A |
| Overvoltage category | II |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 72 V (DC) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440205eCl@ss 8.027440205eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 8 |
