View larger
Images are for illustrative purposes only. Please refer to data sheet for details

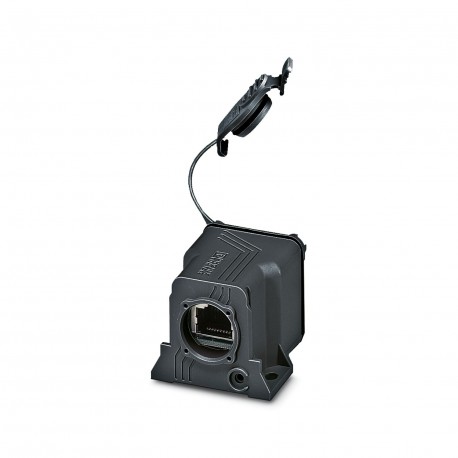

VS-08-KU-IP67-BK 1658684 PHOENIX CONTACT RJ45 coupling
VS-08-KU-IP67-BK
1658684
PHOENIX CONTACT
1 Pcs.
RJ45 coupling
RJ45 coupling, IP67, CAT5e, with protective cover, color: Black
Automation > Fibre optic attenuator
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1658684 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 357 (C-2-2017) |
| GTIN | 4046356163217 |
| Weight per Piece (excluding packing) | 44.940 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 8 |
|---|---|
| Number of slots | 1 |
| Connection profile | RJ45 |
| Insertion/withdrawal cycles | ≥ 750 |
| Connection method | Coupling |
| Cable outlet | straight |
| Color | black |
| Insulation resistance | ≥ 500 MΩ |
| Degree of protection | IP65/IP67 |
Ambient conditions
| Ambient temperature (operation) | -10 °C ... 60 °C |
|---|---|
| Ambient temperature (assembly) | -40 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Degree of protection | IP67 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | PBT |
| Contact carrier material | Thermoplastic |
| Contact material | Copper alloy |
| Contact surface material | Gold over nickel |
| Sealing material | NBR |
| Seal material | NBR |
Electrical characteristics
| Number of positions | 8 |
|---|---|
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| GRP transmission properties | CAT5 (IEC 11801:2002) CAT5 (IEC 11801:2002) |
| Rated current | 1 A |
| Overvoltage category | I |
| Degree of pollution | 1 |
| Rated voltage (III/3) | 72 V (DC) |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
