View larger
Images are for illustrative purposes only. Please refer to data sheet for details

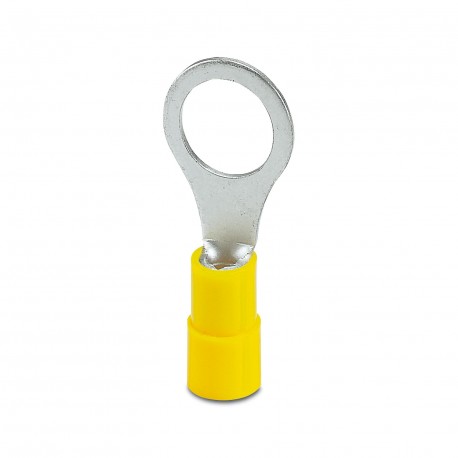

C-RCI 6/M10 3240031 PHOENIX CONTACT Ring cable lug
C-RCI 6/M10
3240031
PHOENIX CONTACT
25 Pcs.
Ring cable lug
Ring wire terminal, yellow, 4 ... 6 mm², M10
Ring cable lug, yellow, 4 ... 6 mm2, M10
Automation > Solderless copper terminals for copper conductors
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Connector |
| Data management status | |
| Article revision | 00 |
Electrical properties
| Fuse | yes |
Dimensions
| Dimensional drawing |  |
| Width | 15 mm |
| Sleeve length | 34.9 mm |
| Length of the insulating material sleeve | 14 mm |
| Maximum stripping length | 9 mm |
| Distance from the center to the insulating material sleeve | 13.4 mm |
| Min. material thickness | 1 mm |
| Inner dimensions of the insulating collar | 6.6 mm |
| Internal dimensions | |
| Internal diameter | 10.5 mm |
Material specifications
| Color | yellow (RAL 1018) |
| Material | Copper |
| Flammability rating according to UL 94 | V2 |
| Coating | tin-plated |
| Insulating material | PA |
| Components | halogen-free |
Mechanical properties
| Technical data | |
| Sleeve length | 34.9 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Optimum ambient temperature (storage/transport) | 20.00 °C 50.00 % Humidity (RH), store inside sealed original packaging. Avoid direct sunlight and heat. |
| Ambient temperature (operation) | -20 °C ... 105 °C |
| Ambient temperature (assembly) | -20 °C ... 100 °C |
| Short-term temperature | 100 °C |
Standards and regulations
| Design according to standard | JIS, UL, CSA |
| Feature Name | Feature Value |
|---|---|
| Flange shape (EF001339) | Ring shape |
| Nominal cross section (EF005124) | 4 mm² |
| Material (EF002169) | Copper |
