View larger
Images are for illustrative purposes only. Please refer to data sheet for details

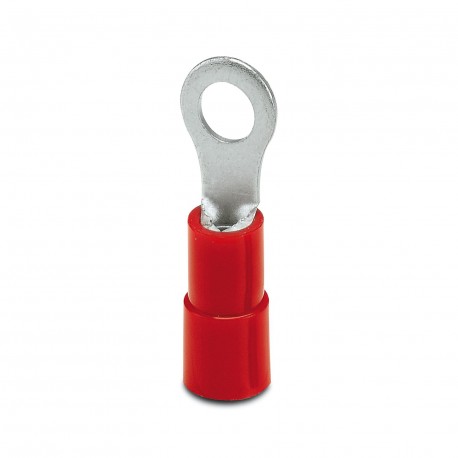

C-RCI 1,5/M3,5 3240017 PHOENIX CONTACT Ring cable lug
C-RCI 1,5/M3,5
3240017
PHOENIX CONTACT
100 Pcs.
Ring cable lug
Ring wire terminal, red, 0.5 ... 1.5 mm², M3.5
Automation > Solderless copper terminals for copper conductors
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240017 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Catalog page | Page 492 (C-3-2017) |
| GTIN | 4046356451642 |
| Weight per Piece (excluding packing) | 0.650 g |
| Custom tariff number | 85369010 |
| Country of origin | CN (China) |
Dimensions
| Length (b) | 17.5 mm |
|---|---|
| Width (a) | 5.5 mm |
| Maximum stripping length | 7 mm |
| Length of insulation sleeve (c) | 10.5 mm |
| Inner dimension of the insulating collar (d) | 4.1 mm |
| Distance between the center and the insulation sleeve (e) | 4.3 mm |
| Inner diameter (f) | 3.7 mm |
| Material thickness (g) | 0.75 mm |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 105 °C |
|---|---|
| Ambient temperature (assembly) | -20 °C ... 100 °C |
| Optimum ambient temperature (storage/transport) | 20 °C 50 % Humidity (RH), store inside sealed original packaging. Avoid direct sunlight and heat. |
| Short-term temperature | 100 °C |
General
| Color | red |
|---|---|
| Stripping length | 7 mm |
| Components | halogen-free |
| Flammability rating according to UL 94 | V2 |
| Material | Copper |
| Insulating material | PA |
| Coating | tin-plated |
Standards and Regulations
| Flammability rating according to UL 94 | V2 |
|---|---|
| Design according to standard | JIS, UL, CSA |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027060701eCl@ss 4.127060701eCl@ss 5.027400201eCl@ss 5.127400200eCl@ss 6.027400200eCl@ss 7.027400204eCl@ss 8.027400204eCl@ss 9.027400204
| Feature Name | Feature Value |
|---|---|
| Flange shape (EF001339) | Ring shape |
| Nominal cross section (EF005124) | 0.5 mm² |
| Material (EF002169) | Copper |
