View larger
Images are for illustrative purposes only. Please refer to data sheet for details

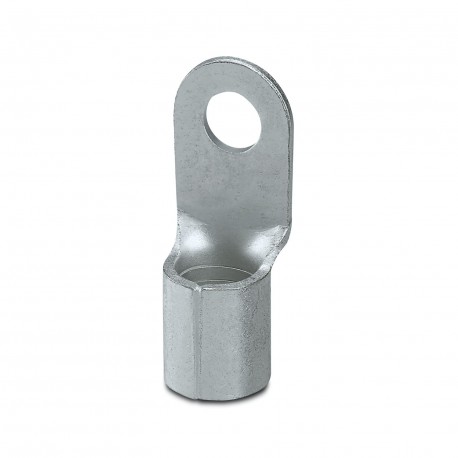

C-RC 50/M8 DIN 3240111 PHOENIX CONTACT Ring cable lug
C-RC 50/M8 DIN
3240111
PHOENIX CONTACT
100 Pcs.
Ring cable lug
Ring cable lug, uninsulated, 50 mm², M8
Automation > Solderless copper terminals for copper conductors
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Connector |
| Data management status | |
| Article revision | 00 |
Dimensions
| Dimensional drawing |  |
| Width | 18 mm |
| Sleeve length | 43 mm |
| Length of the insulating material sleeve | 16 mm |
| Maximum stripping length | 19 mm |
| Distance from the center to the insulating material sleeve | 18 mm |
| Min. material thickness | 1.8 mm |
| Inner dimensions of the insulating collar | 11 mm |
| Internal dimensions | |
| Internal diameter | 8.4 mm |
Material specifications
| Color | silver-colored |
| Material | Copper |
| Coating | tin-plated |
Mechanical properties
| Technical data | |
| Sleeve length | 43 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | 110 °C |
Standards and regulations
| Design according to standard | DIN 46234 |
