View larger
Images are for illustrative purposes only. Please refer to data sheet for details

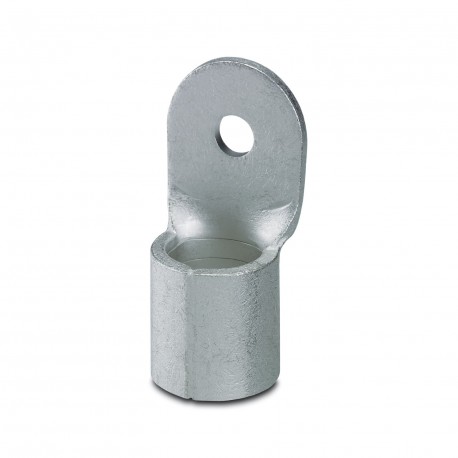

C-RC 240/M10 DIN 3240134 PHOENIX CONTACT Ring cable lug
C-RC 240/M10 DIN
3240134
PHOENIX CONTACT
10 Pcs.
Ring cable lug
Ring cable lug, uninsulated, 240 mm², M10
Automation > Solderless copper terminals for copper conductors
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240134 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 491 (C-3-2017) |
| GTIN | 4046356453516 |
| Weight per Piece (excluding packing) | 151.920 g |
| Custom tariff number | 85369010 |
| Country of origin | CN (China) |
Dimensions
| Length (b) | 75 mm |
|---|---|
| Width (a) | 38 mm |
| Maximum stripping length | 35 mm |
| Length of insulation sleeve (c) | 32 mm |
| Inner dimension of the insulating collar (d) | 23.5 mm |
| Distance between the center and the insulation sleeve (e) | 24 mm |
| Inner diameter (f) | 10.5 mm |
| Material thickness (g) | 4 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027060701eCl@ss 4.127060701eCl@ss 5.027400201eCl@ss 5.127400200eCl@ss 6.027400200eCl@ss 7.027400203eCl@ss 8.027400204eCl@ss 9.027400204
| Feature Name | Feature Value |
|---|---|
| Flange shape (EF001339) | Ring shape |
| Nominal cross section (EF005124) | 240 mm² |
| Material (EF002169) | Copper |
