View larger
Images are for illustrative purposes only. Please refer to data sheet for details

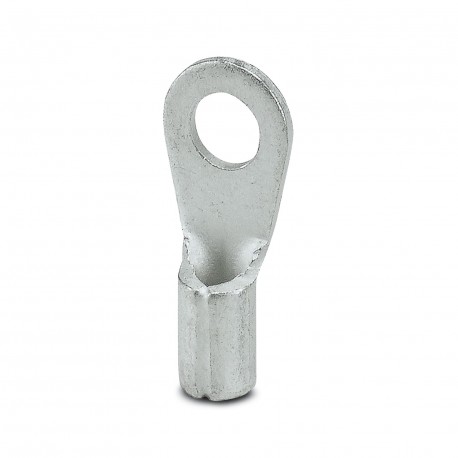

C-RC 1/M2,5 DIN 3240069 PHOENIX CONTACT Ring cable lug
C-RC 1/M2,5 DIN
3240069
PHOENIX CONTACT
100 Pcs.
Ring cable lug
Annular cable terminal, uninsulated, 0.5 ... 1 mm², M2.5
Ring cable lug, uninsulated, 0.5 ... 1 mm2, M2.5
Automation > Solderless copper terminals for copper conductors
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240069 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Catalog page | Page 490 (C-3-2017) |
| GTIN | 4046356452267 |
| Weight per Piece (excluding packing) | 0.560 g |
| Custom tariff number | 85369010 |
| Country of origin | CN (China) |
Dimensions
| Length (b) | 14 mm |
|---|---|
| Width (a) | 6 mm |
| Maximum stripping length | 7 mm |
| Length of insulation sleeve (c) | 5 mm |
| Inner dimension of the insulating collar (d) | 1.6 mm |
| Distance between the center and the insulation sleeve (e) | 6 mm |
| Inner diameter (f) | 2.8 mm |
| Material thickness (g) | 0.8 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027060701eCl@ss 4.127060701eCl@ss 5.027400201eCl@ss 5.127400200eCl@ss 6.027400200eCl@ss 7.027400203eCl@ss 8.027400204eCl@ss 9.027400204
| Feature Name | Feature Value |
|---|---|
| Flange shape (EF001339) | Ring shape |
| Nominal cross section (EF005124) | 0.5 mm² |
| Material (EF002169) | Copper |
