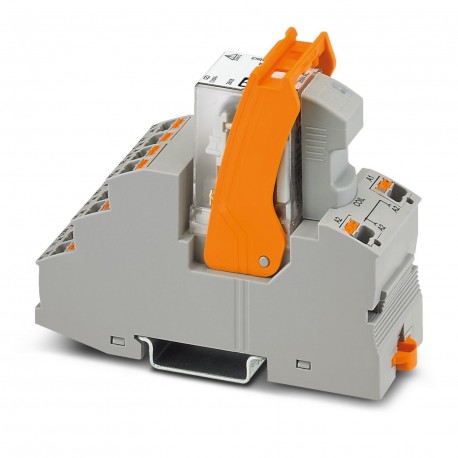

PHOENIX CONTACT RIF-2-RPT-LV-120AC/4X21/EX RIF-2-RPT-LV-120AC/4X21/EX 2909740 PHOENIX CONTACT Relay Module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RIF-2-RPT-LV-120AC/4X21/EX 2909740 PHOENIX CONTACT Relay Module

RIF-2-RPT-LV-120AC/4X21/EX

2909740

PHOENIX CONTACT

10 Pcs.

Relay Module Pre-assembled relay module consisting of: relay socket, function insertable module, relay with power contact and clamping flange approved according to ATEX/IECEx (zone 2) and Ex zone class I, div. 2, Push-in connection, 4 inverter contacts, Varistor, Input voltage: 120 VAC Pre-assembled relay module consisting of: relay base, function plug-in module, power contact relay, and retaining bracket, approval in accordance with ATEX/IECEx (Zone 2) and Ex Zone Class I, Div. 2, Push-in connection, 4 changeover contacts, Varistor, Input voltage: 120 V AC

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Utilization restriction
EMC noteEMC: class A product, see manufacturer's declaration in the download area
Product properties
Product typeRelay Module
Product familyRIFLINE complete
ApplicationClass I, Division 2
potentially explosive areas
Operating mode100% operating factor
Mechanical service lifeapprox. 2x 107cycles
Data management status
Date of last data management22.08.2024
Article revision04
Insulation characteristics
InsulationBasic insulation
Overvoltage categoryIII
II (Zone 2)
Pollution degree2
Electrical properties
Maximum power dissipation for nominal condition1.56 W
Test voltage (Winding/contact)2.5 kVrms(50 Hz, 1 min., winding/contact)
Test voltage (Contact/contact)2 kVrms(50 Hz, 1 min., contact/contact)
Rated insulation voltage250 V AC
Rated surge voltage2.5 kV
Input data
Coil side
Nominal input voltage UN120 V AC
Input voltage range96 V AC ... 144 V AC (20 °C)
Input voltage range in reference to UNsee diagram
Mains frequency50/60 Hz
Drive and functionmonostable
Drive (polarity)polarized
Typical input current at UN13 mA
Typical response time5 ms ... 15 ms
Typical release time range5 ms ... 20 ms
Coil voltage120 V AC
Protective circuitVaristor
Operating voltage displayYellow LED
Output data
Switching
Contact switching type4 changeover contacts
Type of switch contactSingle contact
Contact materialAgNi
Maximum switching voltage250 V AC/DC
Minimum switching voltage5 V (24 mA)
Limiting continuous current5 A (see diagram)
Maximum inrush current16 A (20 ms, N/O contacts)
Min. switching current5 mA (24 V)
Interrupting rating (ohmic load) max.120 W (at 24 V DC)
124 W (at 48 V DC)
108 W (at 60 V DC)
52 W (at 110 V DC)
48 W (at 220 V DC)
1250 VA (for 250 V AC)
Switching capacity2 A (at 24 V, DC13)
0.22 A (at 120 V, DC13)
0.11 A (at 250 V, DC13)
1.5 A (at 24 V, AC15)
1.5 A (at 120 V, AC15)
1 A (at 240 V, AC15)
Connection data
Connection methodPush-in connection
Stripping length8 mm
Conductor cross section rigid0.14 mm² ... 1.5 mm²
Conductor cross section flexible0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block)
Conductor cross section AWG26 ... 16 (solid)
26 ... 16 (flexible)
Dimensions
Drill hole
Diameter3.2 mm
Width31 mm
Height96 mm
Depth75 mm
Material specifications
Colorgray (RAL 7042)
Flammability rating according to UL 94V2 (Housing)
Environmental and real-life conditions
Ambient conditions
Degree of protection (Relay base)IP20 (Relay base)
Degree of protection (Relay)RT III (Relay)
Ambient temperature (operation)-40 °C ... 50 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Approvals
ATEX
Identification II 3G Ex ec nC IIC T4 Gc
CertificateIBExU17ATEXB014X
UKCA Ex (UKEX)
Identification II 3G Ex ec nC IIC T4 Gc
CertificatePxcIF21UKEX2909741X
IECEx
IdentificationEx ec nC IIC T4 Gc
CertificateIECEx IBE 17.0032X
UL, USA/Canada
IdentificationClass I, Div. 2, Groups A, B, C, D T4
Class I, Zone 2, Group IIC
Corrosive gas test
IdentificationISA-S71.04. G3 Harsh Group
EN 60068-2-60
Standards and regulations
Standards/regulationsIEC 60947-5-1
IEC 61508-1
Ex zone
Standards/regulationsEN/IEC 60079-0
EN/IEC 60079-7
EN/IEC 60079-15
Mounting
Mounting typeDIN rail mounting
Assembly notein rows with zero spacing
Mounting positionany

ETIM for 2909740 Relays (EC001437)
Feature Name Feature Value
Type of electric connection (EF003961) Other
Complete with socket (EF003359) Yes
With detachable clamps (EF003340) No
With LED indication (EF005950) Yes
Rated control supply voltage AC 50 Hz (EF003978) 96 V
Rated control supply voltage AC 60 Hz (EF003979) 96 V
Voltage type for actuating (EF008242) AC
Drive, polarization (EF003355) Polarized
Drive, switching attitude (EF003356) Mono stable
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 4
Type of switch contact (EF003358) Single contact
With forced-guided contacts (EF003357) No
Material of contact insert (EF008521) Other
Material of contact surface (EF004020) Untreated
Nominal current (EF000001) 0.013 A
Degree of protection (IP) (EF005474) IP20
Width (EF000008) 31 mm
Height (EF000040) 96 mm
Depth (EF000049) 75 mm
