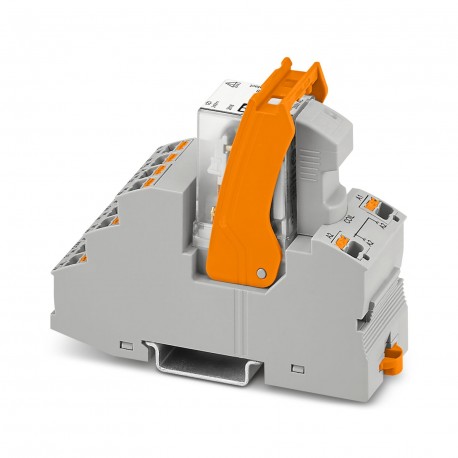

PHOENIX CONTACT RIF-2-RPT-LDP-24DC/4X21/EX RIF-2-RPT-LDP-24DC/4X21/EX 2909741 PHOENIX CONTACT Relay Module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RIF-2-RPT-LDP-24DC/4X21/EX 2909741 PHOENIX CONTACT Relay Module

RIF-2-RPT-LDP-24DC/4X21/EX

2909741

PHOENIX CONTACT

1 Pcs.

Relay Module Pre-assembled relay module consisting of: relay socket, function insertable module, relay with power contact and clamping flange approved according to ATEX/IECEx (zone 2) and Ex zone class I, div. 2, Push-in connection, 4 inverter contacts, Free flow diode, Input voltage: 24 VDC

Automation > Switching relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2909741
Packing unit10 pc
NoteMade to Order (non-returnable)
GTIN4055626379913
Weight per Piece (excluding packing)109.630 g
Custom tariff number85364110
Country of originCN (China)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width31 mm
Height96 mm
Depth75 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C

Coil side

Nominal input voltage UN24 V DC
Input voltage range in reference to UNsee diagram
Typical input current at UN42 mA
Typical response time13 ms
Typical release time14 ms
Coil voltage24 V DC
Protective circuitDamping diode
Operating voltage displayYellow LED
Power dissipation for nominal condition1.01 W

Contact side

Contact type4 PDTs
Type of switch contactSingle contact
Contact materialAgNi
Maximum switching voltage250 V AC/DC
Minimum switching voltage5 V (At 24 mA)
Min. switching current5 mA (at 24 V)
Maximum inrush current16 A (20 ms, N/O contact)
Limiting continuous current6 A (see diagram)
Interrupting rating (ohmic load) max.144 W (at 24 V DC)
124 W (at 48 V DC)
108 W (at 60 V DC)
52 W (at 110 V DC)
48 W (at 220 V DC)
1500 VA (for 250 V AC)
Switching capacity2 A (at 24 V, DC13)
0.22 A (at 120 V, DC13)
0.11 A (at 250 V, DC13)
1.5 A (at 24 V, AC15)
1.5 A (at 120 V, AC15)
1 A (at 240 V, AC15)

General

Test voltage relay winding/relay contact2.5 kVrms(50 Hz, 1 min.)
Test voltage relay contact/relay contact2 kVrms(50 Hz, 1 min.)
Operating mode100% operating factor
Degree of protectionIP20 (Relay base)
RT III (Relay)
Mechanical service lifeapprox. 2x 107cycles
ATEX II 3G Ex ec nC IIC T4 Gc
EU-type examination certificateIBExU17ATEXB014X
IECExEx ec nC IIC T4 Gc
IECEx certificateIECEx IBE 17.0032X
UL, USA/CanadaClass I, Div. 2, Groups A, B, C, D T4
Class I, Zone 2, Group IIC
Mounting positionany
Assembly instructionsIn rows with zero spacing

Connection data input side

Connection nameCoil side
Connection methodPush-in connection
Stripping length8 mm
Conductor cross section solid0.14 mm² ... 1.5 mm²
Conductor cross section flexible0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block)
Conductor cross section AWG26 ... 16 (solid)
26 ... 16 (flexible)

Connection data output side

Connection nameContact side
Connection methodPush-in connection
Stripping length8 mm
Conductor cross section solid0.14 mm² ... 1.5 mm²
Conductor cross section flexible0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block)
Conductor cross section AWG26 ... 16 (solid)
26 ... 16 (flexible)

Standards and Regulations

Standards/regulationsDIN EN 50178
IEC 61508-1
Rated insulation voltage250 V AC
Rated surge voltage2.5 kV
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII
DesignationEx zone
Standards/regulationsEN/IEC 60079-0
EN/IEC 60079-7
EN/IEC 60079-15
Flammability rating according to UL 94V2
ATEX II 3G Ex ec nC IIC T4 Gc
IECExEx ec nC IIC T4 Gc
UL, USA/CanadaClass I, Div. 2, Groups A, B, C, D T4
Class I, Zone 2, Group IIC

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
