View larger
Images are for illustrative purposes only. Please refer to data sheet for details

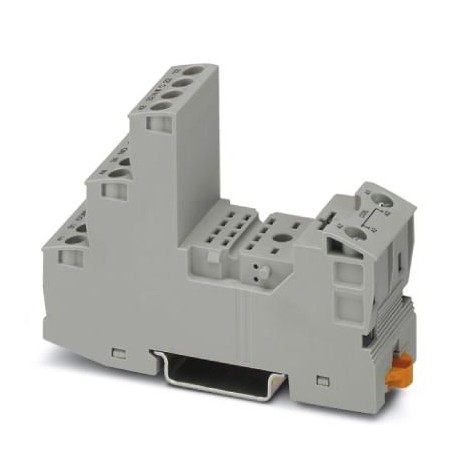

RIF-2-BSC/4X21/EX 1047031 PHOENIX CONTACT Relay base
RIF-2-BSC/4X21/EX
1047031
PHOENIX CONTACT
10 Pcs.
Relay base
RIF-2.../EX relay socket for equipping with sealed RTIII industrial relays with 4 switched contacts for use in zone 2, screw connection, socket for input/anti-parasitic modules, for rail mounting NS 35/7.5
Automation > Relay socket
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1047031 |
|---|---|
| Packing unit | 10 pc |
| GTIN | 4055626646114 |
| Weight per Piece (excluding packing) | 68.000 g |
| Custom tariff number | 85366990 |
| Country of origin | CN (China) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 60 °C (Related to the assembly) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Connection data, input side
| Connection name | Input side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.5 mm² ... 4 mm² |
| Conductor cross section flexible | 0.5 mm² ... 4 mm² |
| 0.5 mm² ... 4 mm² (Ferrule with plastic sleeve) | |
| Conductor cross section flexible (2 conductors with same cross section) | 0.5 mm² ... 2.5 mm² |
| 0.5 mm² ... 1.5 mm² (TWIN ferrule with plastic sleeve) | |
| Conductor cross section AWG | 20 ... 10 (solid) |
| 20 ... 12 (flexible) | |
| Torque | 0.5 Nm ... 0.6 Nm |
Connection data, output side
| Connection name | Contact side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.5 mm² ... 4 mm² |
| Conductor cross section flexible | 0.5 mm² ... 4 mm² |
| 0.5 mm² ... 4 mm² (Ferrule with plastic sleeve) | |
| Conductor cross section flexible (2 conductors with same cross section) | 0.5 mm² ... 2.5 mm² |
| 0.5 mm² ... 1.5 mm² (TWIN ferrule with plastic sleeve) | |
| Conductor cross section AWG | 20 ... 10 (solid) |
| 20 ... 12 (flexible) | |
| Torque | 0.5 Nm ... 0.6 Nm |
General
| Nominal voltage UN | 250 V AC/DC |
|---|---|
| Nominal current IN | 4x 6 A |
| Protective circuit | depending on the selected input/suppressor modules |
| Color | gray |
| Mounting position | any |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
