View larger
Images are for illustrative purposes only. Please refer to data sheet for details

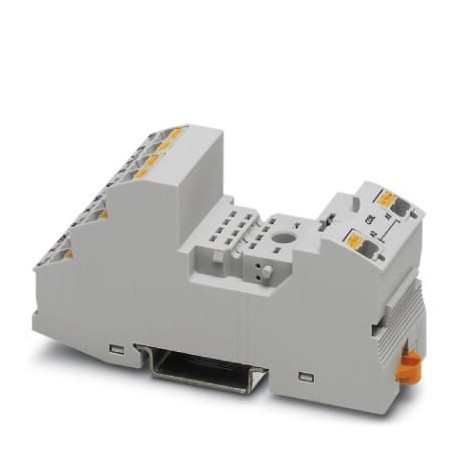

RIF-2-BPT/4X21/EX 1047028 PHOENIX CONTACT Relay base
RIF-2-BPT/4X21/EX
1047028
PHOENIX CONTACT
10 Pcs.
Relay base
RIF-2.../EX relay socket for equipping with sealed RTIII industrial relays with 4 switched contacts for use in zone 2, push-in connection, socket for input/anti-parasitic modules, for rail mounting NS 35/7.5
Automation > Relay socket
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1047028 |
|---|---|
| Packing unit | 10 pc |
| GTIN | 4055626647500 |
| Weight per Piece (excluding packing) | 67.400 g |
| Custom tariff number | 85366990 |
| Country of origin | CN (China) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 60 °C (Related to the assembly) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Connection data, input side
| Connection name | Coil side |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| 0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve) | |
| 0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) | |
| Conductor cross section AWG | 26 ... 16 (solid) |
| 26 ... 16 (flexible) |
Connection data, output side
| Connection name | Contact side |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| 0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve) | |
| 0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) | |
| Conductor cross section AWG | 26 ... 16 (solid) |
| 26 ... 16 (flexible) |
General
| Nominal voltage UN | 250 V AC/DC |
|---|---|
| Nominal current IN | 4x 6 A |
| Protective circuit | depending on the selected input/suppressor modules |
| Color | gray |
| Mounting position | any |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027371102eCl@ss 4.127371102eCl@ss 5.027371603eCl@ss 5.127371603eCl@ss 6.027371600eCl@ss 7.027371603eCl@ss 8.027371603eCl@ss 9.027371603
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Other |
| Mounting method (EF000003) | Other |
| With detachable clamps (EF003340) | No |
| Function extension possible (EF003444) | Yes |
| Number of pins (EF005580) | 14 |
| Width (EF000008) | 31 mm |
| Height (EF000040) | 96 mm |
| Depth (EF000049) | 75 mm |
