RFC 4072S

1051328

PHOENIX CONTACT

1 Pcs.

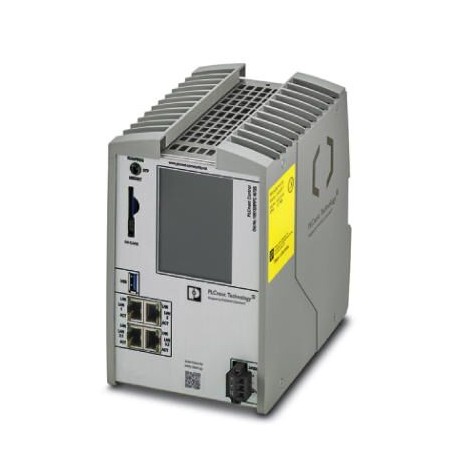

PLCnext Control with 4 x 10/100/1000 Ethernet, PROFINET controller with integrated PROFIsafe safety controller, PROFINET device, IP20 degree of protection, pluggable parameterization memory

Automation > PLC CPU-module
Control Systems (CST)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1051328
Packing unit1 pc
Catalog pagePage 11 (C-6-2019)
GTIN4055626673400
Weight per Piece (excluding packing)3,480.000 g
Custom tariff number85371091
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area
Back to top

Dimensions

Width122 mm
Height182 mm
Depth173 mm
Back to top

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)0 °C ... 60 °C up to 2000 m above mean sea level (from 40 °C only with fan module)
0 °C ... 55 °C up to 3000 m above mean sea level (from 40 °C only with fan module)
Ambient temperature (storage/transport)-25 °C ... 70 °C
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)5 % ... 95 % (non-condensing)
Air pressure (operation)80 kPa ... 108 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)58 hPa ... 108 kPa (up to 4500 m above mean sea level)
Back to top

Mechanical design

Format122 x 182 x 173 mm (W x H x D, without fan module)
122 x 220 x 173 mm (W x H x D, with fan module)
Weight2850 g
Note on weight specificationswithout fan module
Diagnostics displayyes
Controller redundancyNo
Safety functionyes
Back to top

Data interfaces

InterfaceUSB
Number1
Connection methodUSB type A, male connector
InterfaceEthernet
Number4
Connection methodRJ45 socket
Transmission speed10/100/1000 Mbps (100 Mbps (LAN 3.1 and LAN 3.2), 1000 Mbps (LAN 1, LAN 2))
Back to top

IEC 61131 runtime system

Engineering toolPLCnext Engineer
Eclipse
Program memory16 Mbyte
Mass storage32 Mbyte
Retentive mass storage2 Mbyte
Realtime clockIntegrated (battery backup)
Back to top

Power supply

Power supply connectionScrew terminal blocks, plug-in
Typical current consumption1 A
Supply voltage24 V DC
Supply voltage range19.2 V DC ... 30 V DC (including ripple)
Power dissipationmax. 24 W
Back to top

Fieldbus function

Number of supported devicesmax. 256
Back to top

General data

ProcessorIntel®Core™ i5-6300U 2x 2.4 GHz (Standard)
Operating systemYocto/Linux
Back to top

Standards and Regulations

Vibration (operation)1g (according to EN 60068-2-6/IEC 60068-2-6)
Shock (operation)20g (according to EN 60068-2-27/IEC 60068-2-27)
Back to top

Environmental Product Compliance

REACh SVHCLead 7439-92-1
Back to top

Classifications

eCl@ss

eCl@ss 4.027240601
eCl@ss 4.127240601
eCl@ss 5.027242700
eCl@ss 5.127242700
eCl@ss 6.027242200
eCl@ss 7.027242207
eCl@ss 8.027242207
eCl@ss 9.027242207
Back to top

ETIM

ETIM 2.0EC000236
ETIM 3.0EC000236
ETIM 4.0EC000236
ETIM 5.0EC000236
ETIM 6.0EC000236
ETIM 7.0EC000236
Back to top

UNSPSC

UNSPSC 6.0143172015
UNSPSC 7.090143201404
UNSPSC 1143172015
UNSPSC 12.0143201404
UNSPSC 13.239122114
UNSPSC 18.039122114
UNSPSC 19.039122114
UNSPSC 20.039122114
UNSPSC 21.039122114
Back to top

ETIM for 1051328 PLC's (EC000236)
Feature Name Feature Value
Supply voltage DC (EF007534) 19.2 V
Voltage type (supply voltage) (EF002991) DC
Model (EF000010) Compact
Number of HW-interfaces industrial Ethernet (EF003020) 4
Number of interfaces PROFINET (EF006932) 0
Number of HW-interfaces RS-232 (EF003021) 0
Number of HW-interfaces RS-422 (EF003022) 0
Number of HW-interfaces RS-485 (EF003023) 0
Number of HW-interfaces USB (EF003025) 1
Number of HW-interfaces parallel (EF003026) 0
Number of HW-interfaces wireless (EF006933) 0
Number of HW-interfaces other (EF003027) 0
Number of analogue outputs (EF001995) 0
Number of analogue inputs (EF001994) 0
Number of digital inputs (EF001992) 0
Number of digital outputs (EF001993) 0
With optical interface (EF003028) No
Supporting protocol for TCP/IP (EF003050) No
Supporting protocol for PROFIBUS (EF003052) No
Supporting protocol for CAN (EF003053) No
Supporting protocol for EtherCAT (EF017564) No
Supporting protocol for INTERBUS (EF003054) No
Supporting protocol for ASI (EF003051) No
Supporting protocol for KNX (EF003055) No
Supporting protocol for Modbus (EF003057) No
Supporting protocol for Data-Highway (EF003058) No
Supporting protocol for DeviceNet (EF003059) No
Supporting protocol for SUCONET (EF003060) No
Supporting protocol for LON (EF003017) No
Supporting protocol for PROFINET IO (EF007525) Yes
Supporting protocol for PROFINET CBA (EF007524) No
Supporting protocol for SERCOS (EF006657) No
Supporting protocol for Foundation Fieldbus (EF007522) No
Supporting protocol for EtherNet/IP (EF007521) No
Supporting protocol for AS-Interface Safety at Work (EF007519) No
Supporting protocol for DeviceNet Safety (EF007520) No
Supporting protocol for INTERBUS-Safety (EF006662) No
Supporting protocol for PROFIsafe (EF007526) No
Supporting protocol for SafetyBUS p (EF007527) No
Supporting protocol for other bus systems (EF003062) No
IO link master (EF007298) No
System accessory (EF004118) Yes
Redundancy (EF003156) No
Memory size (EF002997) 16384 kByte
Additional program memory possible (EF003029) Yes
Suitable for rail mounting (EF003972) Yes
Wall mounting/direct mounting (EF007020) No
Front built-in possible (EF007016) No
Rack-assembly possible (EF007018) No
Suitable for safety functions (EF001597) Yes
Appendant operation agent (Ex ia) (EF004141) No
Appendant operation agent (Ex ib) (EF004142) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 122 mm
Height (EF000040) 181.700795 mm
Depth (EF000049) 176.388 mm
