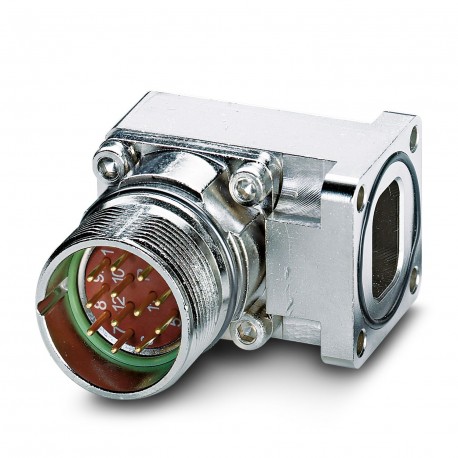

RF-12P2S8AA200 1607268 PHOENIX CONTACT Device connector, front mounting
RF-12P2S8AA200
1607268
PHOENIX CONTACT
10 Pcs.
Device connector, front mounting
Conect. plug. to be apar. front wall, angled, fixed, Screw lock, M23, number of poles: 12, contact type: Male, Axial O-ring, 4x Ø 3.2, shielded: yes, flange size: 26mm x 26mm, protection index: IP67, number of poles: 12, connection type: Crimped connection, series: RF, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1242258
Device connector front mounting, angled fixed, Screw locking mechanism, M23, number of positions: 12, contact connection type: Pin, Axial O-ring, 4x Ø 3.2, shielded: yes, flange dimensions: 26 mm x 26 mm, number of positions: 12, connection method: Crimp connection, series: RF, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1242258
Cables > Circular connector, mounting (without cable)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Order information: | Order crimp contacts Ø 1 mm separately |
Mounting
| Mounting type | Front mounting |
| Mounting | 4x Ø 3.2 |
Product properties
| Product type | Circular connectors (device side) |
| Series | RF |
| Application | Signal |
| Signal | |
| Number of positions | 12 |
| Connection profile | 12 |
| Shielded | yes |
| Coding | S |
| Thread type | M23 |
| Data management status | |
| Article revision | 04 |
Dimensions
| Housing | |
| Flange dimensions | 26 mm x 26 mm |
Material specifications
| Seal material | FPM |
| Housing material | Metal |
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Insulator material | PA 6.6 |
| Gasket and O-ring material | FPM |
Electrical properties
| Contact | |
| Contact diameter | 1 mm |
| Max. current | 8 A |
| Nominal voltage UN | 48 V AC 74 V DC |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 1.5 kV |
Connection data
| Conductor connection | |
| Connection method | Crimp connection |
| Contact connection type | Pin |
Connector
| Type | angled fixed |
| Direction of rotation | Counter direction |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Altitude | 2000 m |
| Feature Name | Feature Value |
|---|---|
| With shield connection (EF002535) | Yes |
| Number of poles (EF001391) | 12 |
| Number of control contacts (EF012217) | 12 |
| With PE-connection (EF005600) | No |
| Housing material (EF001596) | Other |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| With thread (EF003723) | Yes |
