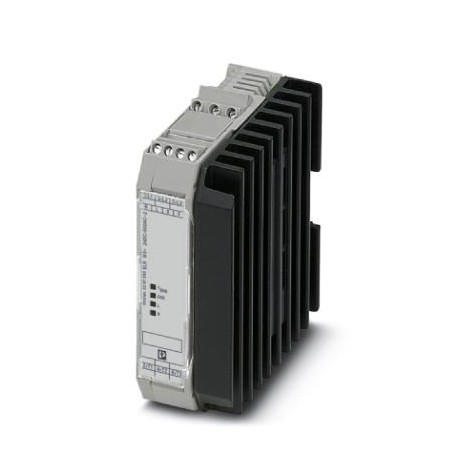

ELR W3- 24DC/500AC- 2 2297293 PHOENIX CONTACT Solid-state reversing contactor
ELR W3-24DC/500AC-2
2297293
PHOENIX CONTACT
1 Pcs.
Solid-state reversing contactor
Three-phase semiconductor inverter contactor with 24 V DC input, 2 A output current, zero voltage switch, optionally with thermal fuse
Automation > Power contactor, AC switching
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2297293 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 40 (C-5-2017) |
| GTIN | 4046356175654 |
| Weight per Piece (excluding packing) | 419.800 g |
| Custom tariff number | 85364900 |
| Country of origin | DE (Germany) |
| Width | 40 mm |
|---|---|
| Height | 99 mm |
| Depth | 114.5 mm |
| Ambient temperature (operation) | -25 °C ... 70 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Degree of protection | IP20 |
Input data
| Input name | Control input right/left |
|---|---|
| Rated actuating voltage UC | 24 V DC |
| Triggering voltage range | 19.2 V DC ... 30 V DC |
| Voltage range with reference to UC | 0.8 ... 1.25 |
| Rated actuating current IC | 12.7 mA |
| Switching threshold | 9.6 V (“0” signal) |
| 19.2 V (“1” signal) | |
| Protective circuit | Reverse polarity protection Suppressor diode |
| Surge protection | |
| Status display | Yellow LED |
| Indication | Red LED |
Output data load output
| Output name | AC output |
|---|---|
| Rated operating voltage Ue | 500 V AC |
| Operating voltage range | 48 V AC ... 575 V AC |
| Load current range | 100 mA ... 2 A (see to derating) |
| Rated operating current at AC-51 | 2 A |
| Rated operating current at AC-53a | 2 A |
| Leakage current | 6 mA |
| Residual voltage | < 1.5 V |
| Surge current | 200 A (t = 10 ms) |
| Type of protection | RCV circuit |
General
| Test voltage input/output | 5 kVrms |
|---|---|
| Switching frequency | max. 5 Hz |
| Mounting position | Vertical (horizontal DIN rail) |
| Assembly instructions | Can be aligned with spacing = 20 mm |
| Operating mode | 100% operating factor |
| Reversing frequency | ≤ 10 Hz |
| Connection name | Control circuits |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
| Connection name | Load circuit |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | DC |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 0 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 2 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 2 A |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Modular version (EF001126) | Yes |
