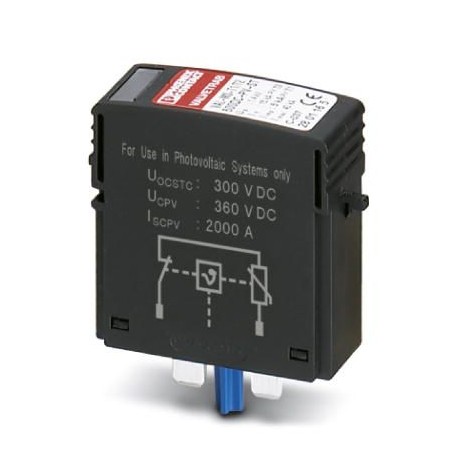

VAL-MS-T1/T2 600DC-PV-ST 2801165 PHOENIX CONTACT Type 1/2 surge protection plug
VAL-MS-T1/T2 600DC-PV-ST
2801165
PHOENIX CONTACT
1 Pcs.
Type 1/2 surge protection plug
Protec. Spare plug-in for PV arrester combinations from the VAL-MS-T1/T2 600DC-PV product line-...
Automation > Accessories/spare parts for surge protection power supply systems
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2801165 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 41 (C-4-2017) |
| GTIN | 4046356714280 |
| Weight per Piece (excluding packing) | 57.420 g |
| Custom tariff number | 85363030 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (amsl (above mean sea level)) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 60g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (operation) | 7.5g (5-500 Hz/2.5 h/XYZ) |
General
| IEC test classification | PV I / II |
|---|---|
| PV T1 / T2 | |
| EN type | T1 / T2 |
| SPD failure behavior | OCM (Open-circuit mode) |
| Installation location | Inside |
| Accessibility | Accessible |
| Installation location of the disconnect device | Internal |
| Mounting type | on base element |
| Color | jet black RAL 9005 |
| Housing material | PA 6.6-FR |
| Degree of pollution | 2 |
| Flammability rating according to UL 94 | V-0 |
| Type | Male |
| Surge protection fault message | optical |
Protective circuit DC voltage side (DC)
| Maximum continuous operating voltage UCPV | 360 V DC |
|---|---|
| Short-circuit current rating ISCPV | 2000 A |
| Continuous operating current ICPV | < 20 µA |
| Standby power consumption PC | ≤ 10 mVA |
| Nominal discharge current (8/20) µs | 15 kA |
| Maximum discharge current Imax(8/20) µs | 40 kA |
| Impulse discharge current (10/350) µs, charge | 2.5 As |
| Impulse discharge current (10/350) µs, specific energy | 6.25 kJ/Ω |
| Impulse discharge current (10/350) µs, peak value limp | 5 kA |
| Voltage protection level Up | ≤ 1.4 kV |
| Residual voltage Ures | ≤ 1.4 kV (at In) |
| ≤ 1.1 kV (at 5 kA) | |
| ≤ 1.2 kV (at 10 kA) | |
| ≤ 1.5 kV (at 20 kA) | |
| ≤ 1.6 kV (at 30 kA) | |
| ≤ 1.8 kV (at 40 kA) | |
| Response time tA | ≤ 25 ns |
| Insulation resistance Riso | > 5 GΩ (at 500 V DC) |
UL specifications
| SPD Type | 1CA |
|---|---|
| Maximum continuous operating voltage MCOV | 800 V DC |
| Nominal voltage | 800 V DC |
| Mode of protection | (L+) - (L-) |
| (L+) - G | |
| (L-) - G | |
| Power distribution system | DC PV |
| Voltage protection rating VPR | 2 kV |
| Nominal discharge current In | 20 kA |
| Short-circuit current rating (SCCR) | 50 kA |
