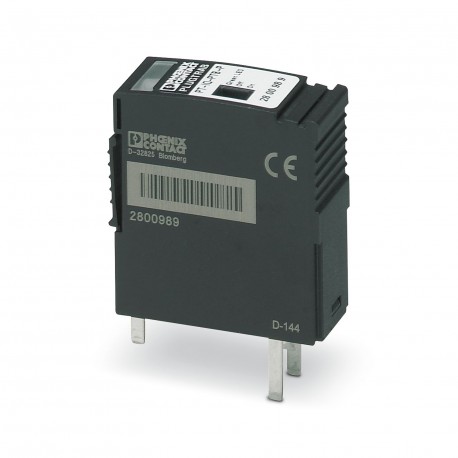

PHOENIX CONTACT PT-IQ-PTB-P PT-IQ-PTB-P 2800989 PHOENIX CONTACT Plug View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PT-IQ-PTB-P 2800989 PHOENIX CONTACT Plug

PT-IQ-PTB-P

2800989

PHOENIX CONTACT

1 Pcs.

Plug Replacement connector for the PLUGTRAB PT-IQ-PTB remote supply and warning module... Replacement plug for the PLUGTRAB PT-IQ-PTB... supply and remote signaling module

Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
GeneralThis product is a replacement plug.
Product properties
Product typeReplacement plug
Product familyPLUGTRAB IQ
TypeMale
Data management status
Article revision15
Insulation characteristics
Overvoltage categoryII
Pollution degree2
Electrical properties
Nominal voltage UN24 V DC
Supply: Status indicator/remote signaling
Operating voltage20 V DC ... 30 V DC
Rated currentmax. 130 mA (24 V DC)
max. 160 mA (20 V DC)
Max. required back-up fuse500 mA (T)
Number of surge protection modules that can be mounted side by side28 (32 °C)
Connection data
Connection methodpluggable
Dimensions
Dimensional drawingyqionlrpwc.jpg
Width17.7 mm
Height45 mm
Depth53.4 mm
Horizontal pitch1 Div.
Material specifications
Colorblack (RAL 9005)
black (RAL 9005)
Flammability rating according to UL 94V-0
Housing materialPA 6.6
Protective circuit
Surge protection fault messageOptical, multi-stage
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Altitude≤ 4000 m (amsl)
Permissible humidity (operation)5 % ... 95 %
Standards and regulations
Standards/specificationsEN 61000-6-2
Note2005
Standards/specificationsEN 61000-6-3
Note2007 + A1:2011
Standards/specificationsEN 60950-1
Note2006 + A1:2010
Standards/specificationsEN 60079-0
Note2018
Standards/specificationsEN 60079-11
Note2012
Standards/specificationsEN 60079-15
Note2010
Standards/specificationsIEC 60079-0
Note2017
Standards/specificationsIEC 60079-11
Note2011
Standards/specificationsIEC 60079-15
Note2010
Mounting
Mounting typeon base element

ETIM for 2800989 Earthing, lightning and surge protection (EC000943)
Feature Name Feature Value
Nominal voltage DC (EF008799) 24 V
