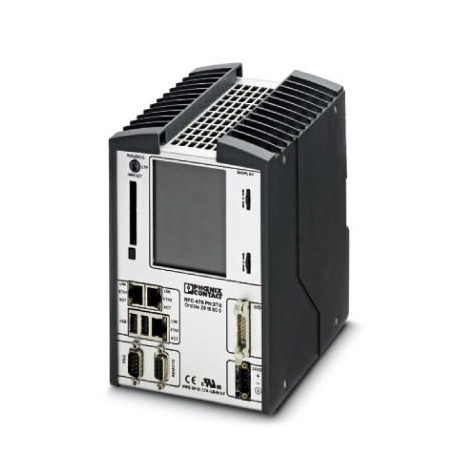

RFC 470 PN 3TX 2916600 PHOENIX CONTACT Controller
RFC 470 PN 3TX
2916600
PHOENIX CONTACT
1 Pcs.
Controller
Remote field controller with 3x10/100 Ethernet, INTERBUS master, PROFINET controller, PROFINET device, IP20 protection degree, pluggable parameterization memory
Automation > PLC CPU-module
Control Systems (CST)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2916600 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 87 (C-6-2017) |
| GTIN | 4046356174114 |
| Weight per Piece (excluding packing) | 2,150.000 g |
| Custom tariff number | 85371091 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | 0 °C ... 55 °C (from 45°C only with fan module) |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 5 % ... 90 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 90 % (non-condensing) |
| Air pressure (operation) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3000 m above sea level) |
| Shock | 25g, Criterion 1, according to IEC 60068-2-27 |
| Vibration (operation) | 1g, Criterion 1, according to IEC 60068-2-6 |
Control system
| Engineering tool | PC WORX |
|---|---|
| Programming languages supported | Programming in acc. with IEC 61131-3 |
| Diagnostics tool | DIAG+, version 2.00 or higher |
IEC 61131 runtime system
| Engineering tool | PC WORX |
|---|---|
| Program memory | typ. 8 Mbyte |
| Mass storage | 16 Mbyte |
| Retentive mass storage | 240 kByte (NVRAM) |
| Number of control tasks | 16 |
| Realtime clock | Integrated (battery backup) |
Fieldbus function
| Amount of process data | max. 8192 Bit (INTERBUS-Master) |
|---|---|
| Number of supported devices | max. 512 (of which 254 are remote bus devices/bus segments) |
| Number of devices with parameter channel | max. 126 |
Data interfaces
| Interface | Ethernet |
|---|---|
| Number | 2 |
| Connection method | RJ45 socket |
| Transmission speed | 10/100 Mbps |
| Interface | Ethernet |
| Number | 1 |
| Connection method | RJ45 socket |
| Transmission speed | 10/100 Mbps |
| Interface | INTERBUS (Master) |
| Number | 1 |
| Connection method | D-SUB-9 female connector |
| Transmission speed | 500 kBaud / 2 MBaud (can be switched) |
| Interface | Parameterization/operation/diagnostics |
| Number | 1 |
| Connection method | D-SUB 9 plug |
PROFINET
| Device function | PROFINET controller, PROFINET device |
|---|---|
| Specification | Version 1.1 |
| Update rate | min. 1 ms |
Direct I/Os
| Input name | Digital inputs |
|---|---|
| Number of inputs | 5 |
| Connection method | 14-pos. FLK pin strip |
| Connection technology | FLK cable connector (14-pos.) |
| Output name | Digital outputs |
| Number of outputs | 3 |
| Connection method | 14-pos. FLK pin strip |
Power supply
| Power supply connection | Screw terminal blocks, plug-in |
|---|---|
| Typical current consumption | 1 A |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including ripple) |
| Power dissipation | max. 24 W |
Mechanical design
| Format | 124 x 185 x 190 mm (W x H x D without fan) |
|---|---|
| 124 x 210 x 190 mm (W x H x D with fan) | |
| Weight | 1870 g |
| Note on weight specifications | without fan module |
| Weight | 2010 g |
| Note on weight specifications | with fan module |
| Diagnostics display | yes |
| Controller redundancy | No |
| Safety function | No |
Standards and Regulations
| Vibration (storage/transport) | 1g, Criterion 1, according to IEC 60068-2-6 |
|---|---|
| Shock | 25g, Criterion 1, according to IEC 60068-2-27 |
| Vibration (operation) | 1g, Criterion 1, according to IEC 60068-2-6 |
Environmental Product Compliance
| REACh SVHC | 1,2-dimethoxyethane,ethylene glycol dimethyl ether (EGDME) 110-71-4 |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
